Hikvision
8 Port Fast Ethernet Smart POE Switch
SKU: DS-3E1310HP-EI--B · CCTV P.o.E. 網絡機
查詢報價

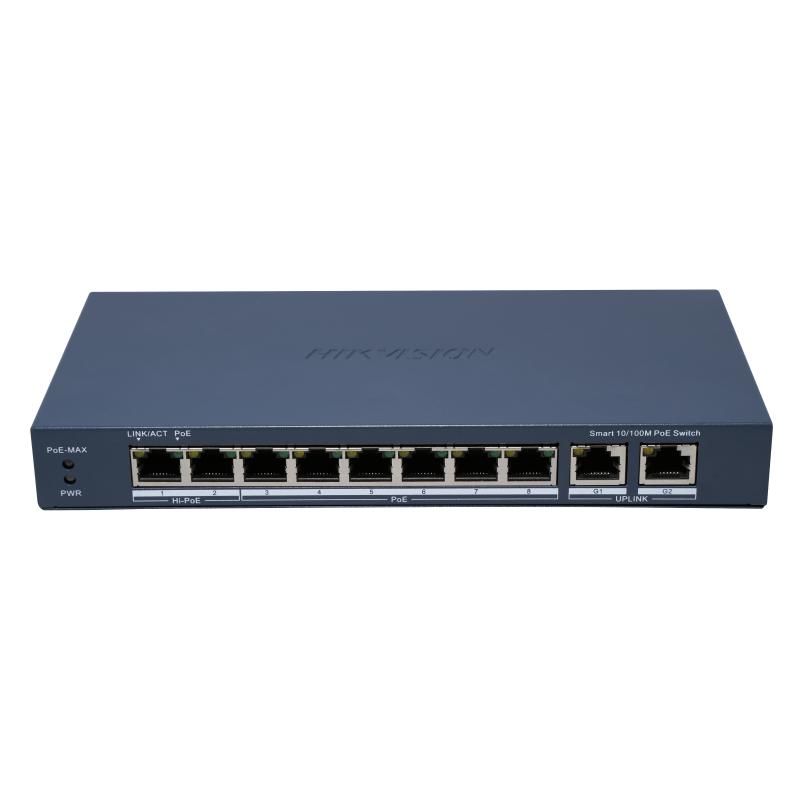

Hikvision 8 Port Fast Ethernet Smart POE Switch DS-3E1310HP-EI (B)
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
General
| Shell | Metal |
| Net Weight | 0.55 kg (1.21 lb) |
| Gross Weight | 0.95 kg (2.1 lb) |
| Dimensions (W × H × D) | 217.6 mm × 27.6 mm × 108.5 mm (8.57'' × 1.09'' × 4.27'') |
| Operating Temperature | 0 °C to 40 °C (0 °F to 104 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 54 VDC, 2.22 A |
| Installation Mode | Desk-Mounted,Wall-Mounted |
| Max. Power Consumption | 120 W |
| Power Consumption in Idle | 10 W |
| Surge Protection | 6 KV |
Network Parameters
| MAC Address Table | 4 K |
| Ports | 8 × 10/100 Mbps PoE port,2 × Gigabit RJ45 port |
| Switching Capacity | 9.6 Gbps |
| Packet Forwarding Rate | 7.14 Mpps |
| Internal Cache | 2 Mbits |
PoE Power Supply
| PoE Standard | Ports 1 to 2: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Ports 3 to 8: IEEE 802.3af, IEEE 802.3at |
| PoE Power Pin | Ports 1 to 2: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-) Ports 3 to 8: End-span: 1/2(-), 3/6(+) |
| PoE Port | Hi-PoE: Ports 1 to 2 PoE: Ports 3 to 8 |
| Max. Port Power | Ports 1 to 2: 90 W Ports 3 to 8: 30 W |
| PoE Power Budget | 110 W |
Software Function
| Long Range | Ports 1 to 8: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| PoE Watchdog | Ports 1 to 8: auto detect and restart the cameras that do not respond. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| Port Isolation | Ports 1 to 8: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support SNMP v1/v2c for third-party management platform access. Support port mirroring for fault locating. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 4094 VLAN. |
Approval
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020),IC (ICES-003: Issue 7:2020),RCM (AS/NZS CISPR 32: 2015) |
| Safety | CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition)), CE-LVD (EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
