Hikvision
16 Port Gigabit Smart POE Switch
SKU: DS-3E1520P-EI-M · CCTV P.o.E. 網絡機
查詢報價

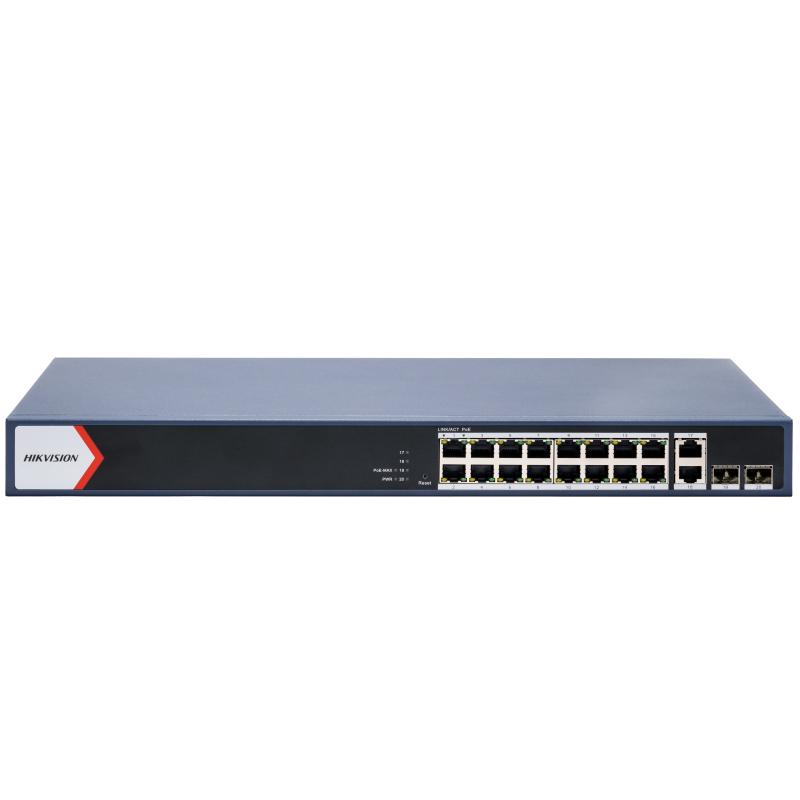

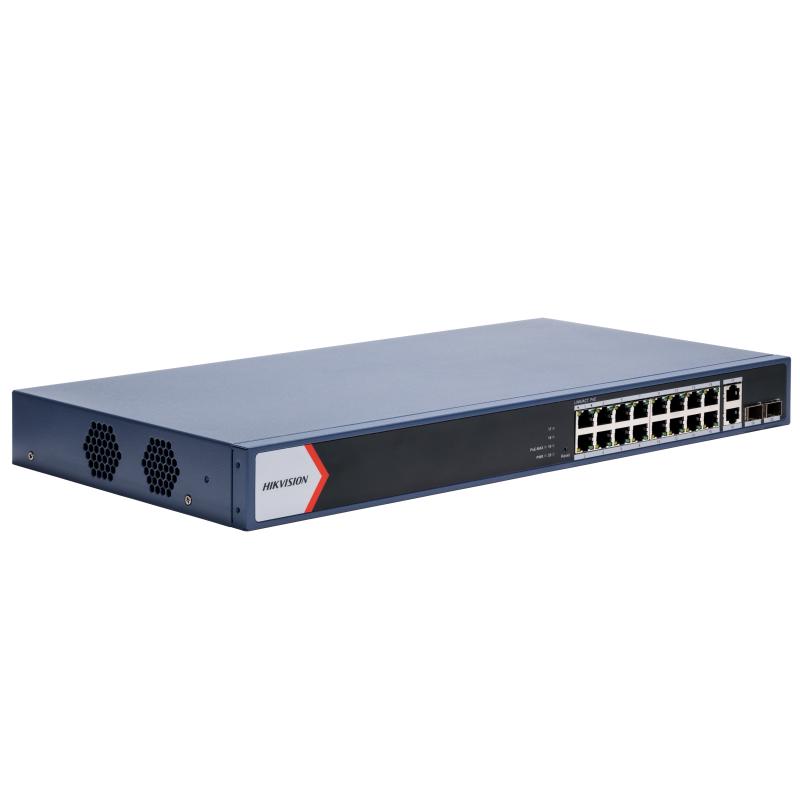

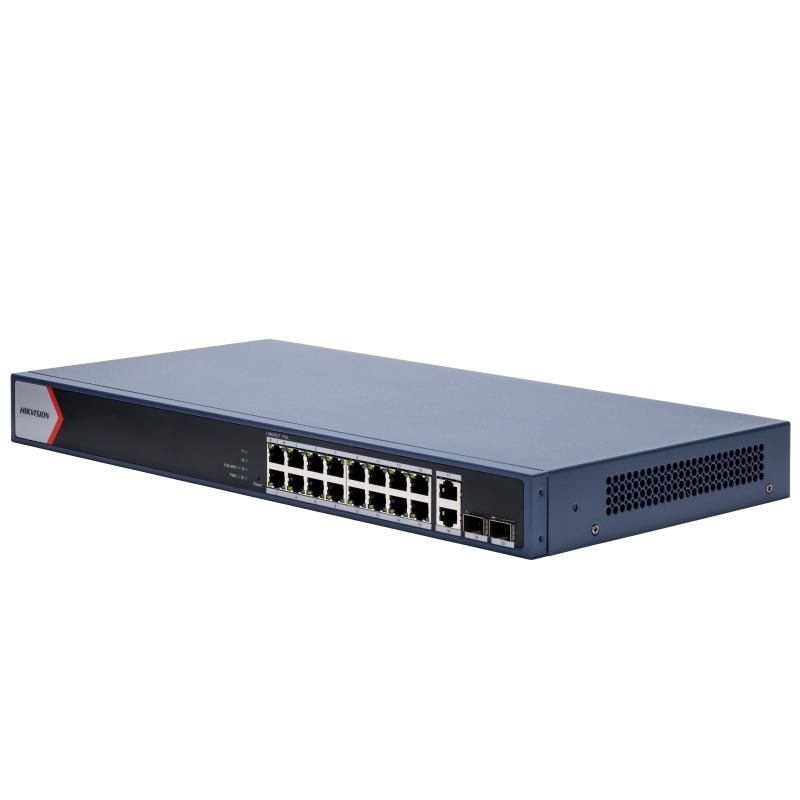

Hikvision 16 Port Gigabit Smart POE Switch DS-3E1520P-EI/M
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
General
| Shell | Metal material |
| Net Weight | 3.1 kg (6.8 lb) |
| Gross Weight | 2.4 kg (5.3 lb) |
| Dimensions (W × H × D) | 440.0 mm × 44.0 mm × 220.8 mm (17.32'' × 1.73'' × 8.69'') |
| Operating Temperature | 0 °C to 45 °C (32 °F to 113 °F) |
| Storage Temperature | -40 °C to 85 °C (-40 °F to 185 °F) |
| Operating Humidity | 5% to 95% (no condensation) |
| Relative Humidity | 5% to 95% (no condensation) |
| Power Supply | 100-240 VAC, 50/60 Hz, Max. 2.5 A |
| Max. Power Consumption | 150 W |
| Power Consumption in Idle | 20 W |
| Surge Protection | 6 KV |
| Installation Mode | Desk-Mounted,Rack (equipped with mounting ears) |
Network Parameters
| Ports | 16 × Gigabit PoE port,2 × Gigabit RJ45 port,2 × Gigabit fiber optical port |
| MAC Address Table | 16 K |
| Switching Capacity | 68 Gbps |
| Packet Forwarding Rate | 50.59 Mpps |
| Internal Cache | 8.4 Mbits |
PoE Power Supply
| PoE Standard | IEEE 802.3af,IEEE 802.3at |
| PoE Power Pin | End-span: 1/2(-), 3/6(+) |
| PoE Port | PoE: Ports 1 to 16 |
| Max. Port Power | 30 W |
| PoE Power Budget | 125 W |
Software Function
| Long Range | Ports 1 to 16: up to 300 m. Long range performance may vary depend on camera model or cable condition. |
| Port Isolation | Ports 1 to 20: port isolation mode to improve network security Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group. |
| PoE Watchdog | Ports 1 to 16: Auto detect and restart the cameras that do not respond. |
| Link Aggregation | Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection. Support static link aggregation. Support 8 aggregation group(s). |
| QoS | QoS is used to allocate bandwidth to different services so as to provide end-to-end service quality assurance. Support port-based priority configuration. Support SP, WRR priority schedule mode. |
| Loop Prevention | Loop prevention is used to prevent the switching network from forming loops, which will seriously affect network communication. Disabled by default. Support 802.1D STP. Support 802.1w RSTP. |
| VLAN | VLAN is used for network scale planning and network health improvement. Support 802.1Q. Configurable VLAN ID from 1-4094. Support Trunk, Access port mode. Support Max. 1024 VLAN. |
| HPP | Support one-click activation and remote management via Hik-Partner Pro. Functions supported: 1. Display the port rate. 2. Display the port bandwidth utilization rate. 3. Display the PoE power usage. 4. Display topology information. 5. Display the alarm status. 6. Restart ports and devices. 7. Enable port long-rage mode. 8. Remotely upgrade the device. |
| System Maintenance | Support device management via web. Support DHCP Client. Enabled by default for dynamic assignment of management IP addresses. Support Super IP, which is a fixed IP address (10.180.190.200) for direct access. Support management via Hik-Central Pro. Support remote management via Hik-Partner Pro. Support cable detection. Abnormal open circuits and short circuits as well as network cable length can be detected. Supports 802.1ab LLDP for peer device discovery. Support port mirroring for fault locating. |
| DHCP Snooping | DHCP Snooping can prevent unauthorized connections to DHCP servers from disrupting the network and affecting normal network communication, and only allow DHCP packets from trusted ports to pass through. Disabled by default. |
| DDM (Digital Diagnostic Monitoring) | Support real-time monitoring of key parameters in optical modules, such as operating temperature, operating voltage, operating current, and Rx and Tx optical power. |
Approval
| EMC | CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020) |
| Safety | UL (UL 60950-1); CB (IEC 60950-1:2005, AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition); CE-LVD (EN 60950-1: 2006 + A11: 2009 +A1: 2010+A12: 2011+A2: 2013, EN 62368-1: 2014+A11: 2017) |
| Chemistry | CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006) |
