Hikvision
KD8 Series Pro Modular Door Station
SKU: DS-KD-DIS · 視像對講機
查詢報價
Hikvision KD8 Series Pro Modular Door Station DS-KD-DIS
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
System parameters
| Operating system | Embedded Linux operation system |
| ROM | 8 MB |
| RAM | 64 MB |
| CPU | Embedded MCU Processor |
Display parameters
| Screen size | 3.5-inch |
| Operation method | Physical buttons |
| Type | TFT LCD screen |
| Resolution | 320 × 480p |
| Brightness | 250 cd/m2 |
Video parameters
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Supplement light | / |
| Video compression standard | / |
Audio parameters
| Audio compression standard | / |
| Audio input | / |
| Audio output | / |
| Audio compression bitrate | / |
| Audio quality | / |
| Volume adjustment | / |
Capacity
| User capacity | / |
| Face capacity | / |
| Card capacity | / |
| Linked network camera capacity | / |
Network parameters
| Communication protocol | / |
| Wired network | / |
| Wi-Fi standard | / |
| Bluetooth version | / |
| 3G/4G standard | / |
Device interfaces
| Alarm input | / |
| Network interface | / |
| TAMPER | / |
| Exit button | / |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | / |
| Alarm output | / |
| Lock control | / |
| Door contact input | / |
| Power interface | 1 |
Performances
| Multi-factor authentication | / |
General
| Button | 4( Up, Down, OK, Back) |
| Installation | Flush mounting, surface mounting |
| Indicator | / |
| Protective level | IP65 |
| Working temperature | 20° C to +60° C(-4° F to 140° F) |
| Working humidity | 10% to 95% |

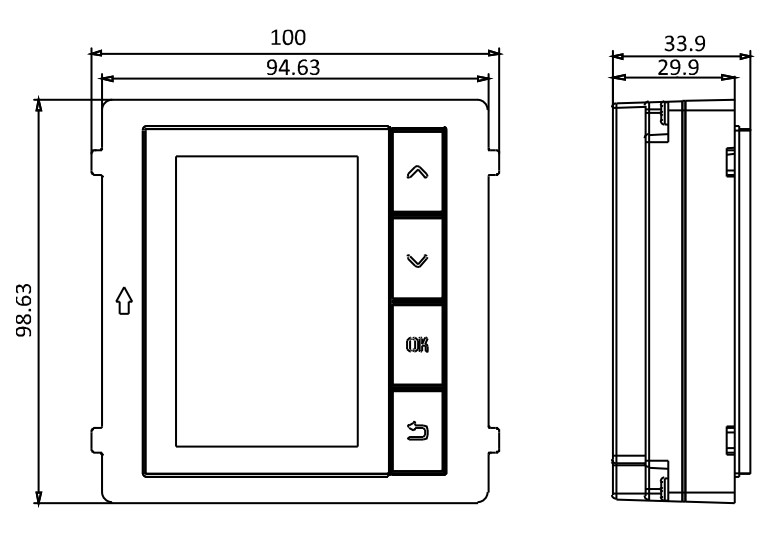

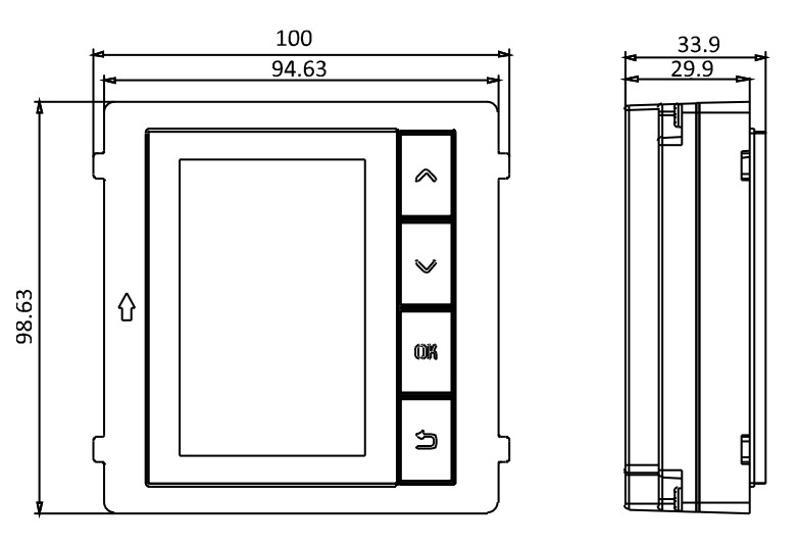

| Dimensions | 98.5 mm × 100 mm × 34.2 mm (3.87" × 3.95" × 1.33") |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | 2.5 W |
