Hikvision
KD8 Series Pro Modular Door Station
SKU: DS-KD8003-IME1-B--NS · 視像對講機
查詢報價

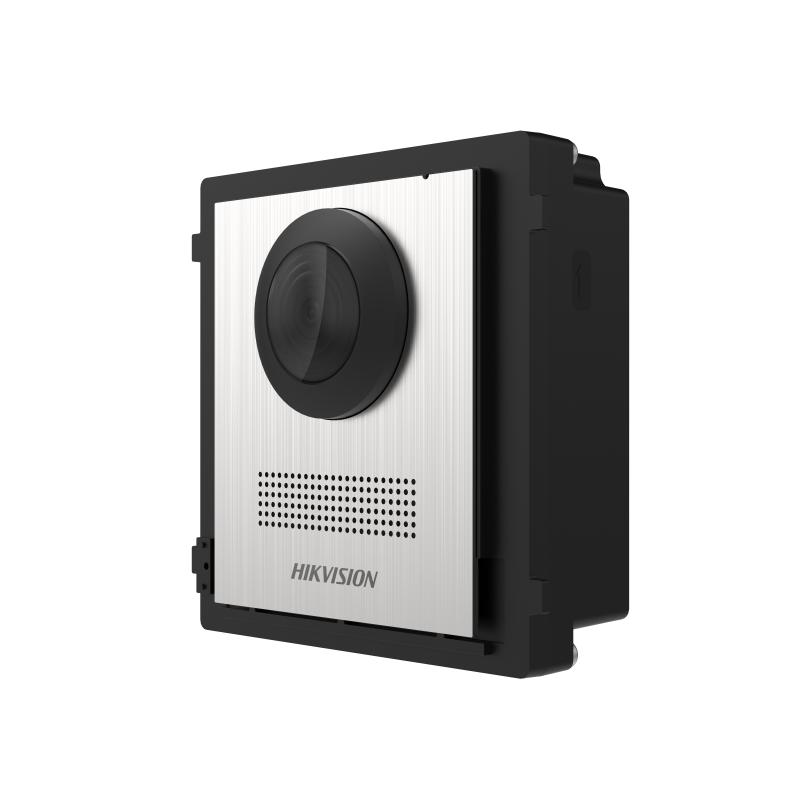

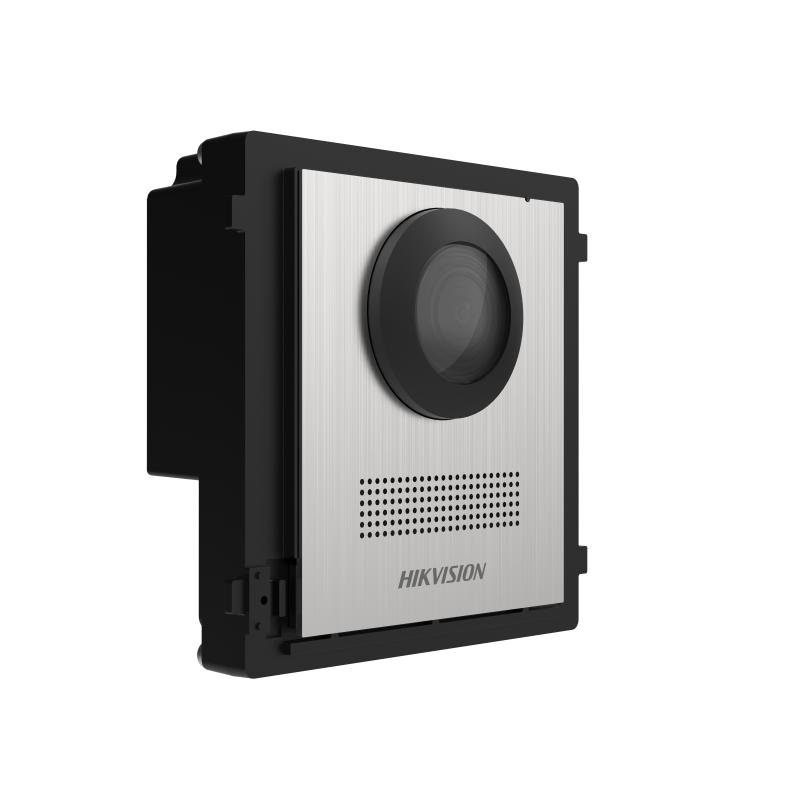

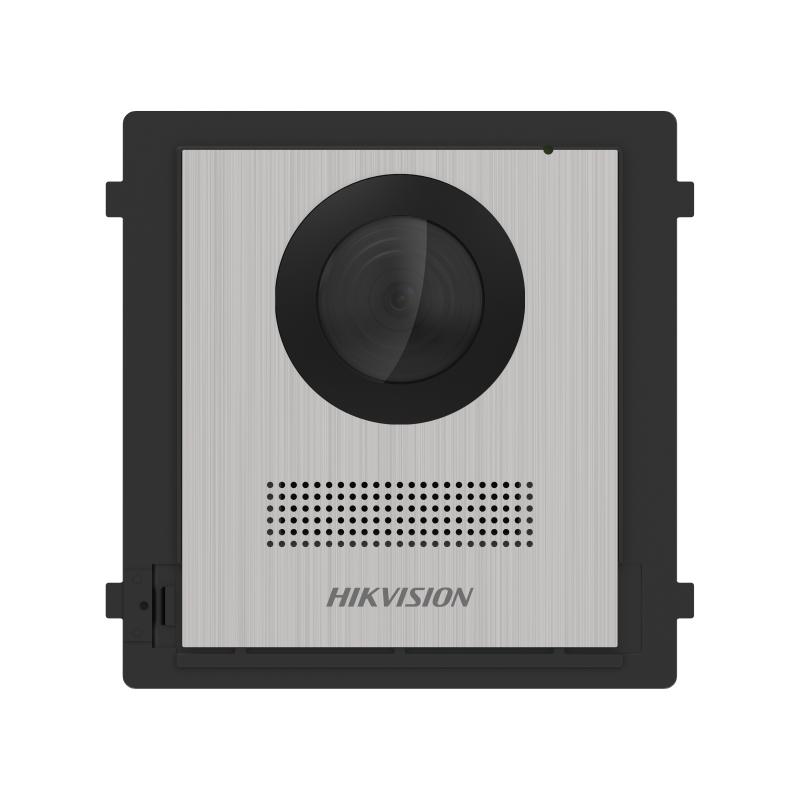

Hikvision KD8 Series Pro Modular Door Station DS-KD8003-IME1(B)/NS
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
System parameters
| Operating system | Embedded Linux operation system |
| ROM | 32 MB |
| RAM | 256 MB |
| CPU | Embedded Processor |
Display parameters
| Screen size | NA |
| Operation method | NA |
| Type | NA |
| Resolution | NA |
Video parameters
| Supplement light | Low illumination, IR supplement lights |
| Video standard | H.264 |
| Lens | 1 |
| FOV | Horizontal: 146°, Vertical: 82° |
| WDR | Support |
| Resolution | 2 MP |
Audio parameters
| Audio input | Built-in omnidirectional microphone |
| Audio compression standard | G.711 U, G.711 A |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity
| Fingerprint capacity | / |
| User capacity | 2000 |
| Card capacity | 6000 |
| Face capacity | NA |
| Linked indoor station capacity | 500 |
| Event capacity | / |
| Sub door station capacity | 16 |
Network parameters
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi | NA |
| Bluetooth | NA |
| 3G/4G | NA |
Device interfaces
| Alarm input | 4 (2 exit butttons and 2 door contacts by default) |
| Network interface | 1 RJ45 |
| TAMPER | 1 |
| Exit button | 2 (2 for lock control) |
| Door contact input | 1 |
| RS-485 | 1 (1 for Hikvision's sub module communication) |
| Wiegand | NA |
| TF card | NA |
| Alarm output | NA |
| Lock control | 2 (2 relay) |
| USB | NA |
| Power interface | 12 VDC Power Input (max to 12 V, 500 mA) |
| Two-wire IP interface | NA |
General
| Power supply | 12 VDC/PoE ( IEEE 802.3af) |
| Working temperature | -40° C to 60° C (-40° F to 140° F) |
| Working humidity | 10% to 95% |
| Button | 0 |
| Protective level | IP65 |
| Installation | Surface mounting & flush mounting |
| Dimensions(L × W × H) | 98 mm × 100 mm × 42 mm (3.86" × 3.94" × 1.65") |
| Language | English,French,Portuguese,BrazilianPortuguese,Spanish,Russian,German,Italian,Polish,Turkish,Vietnamese,Arabic,Czech,Hungarian,Dutch,Romanian,Bulgarian,Ukrainian,Croatian,Serbian,Greek,Slovak |
| Indicator | 0 |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | ≤ 5 W |
