Hikvision
7 inch touch IP indoor station
SKU: DS-KH6320-LE1-B--WHITE · 視像對講機
查詢報價

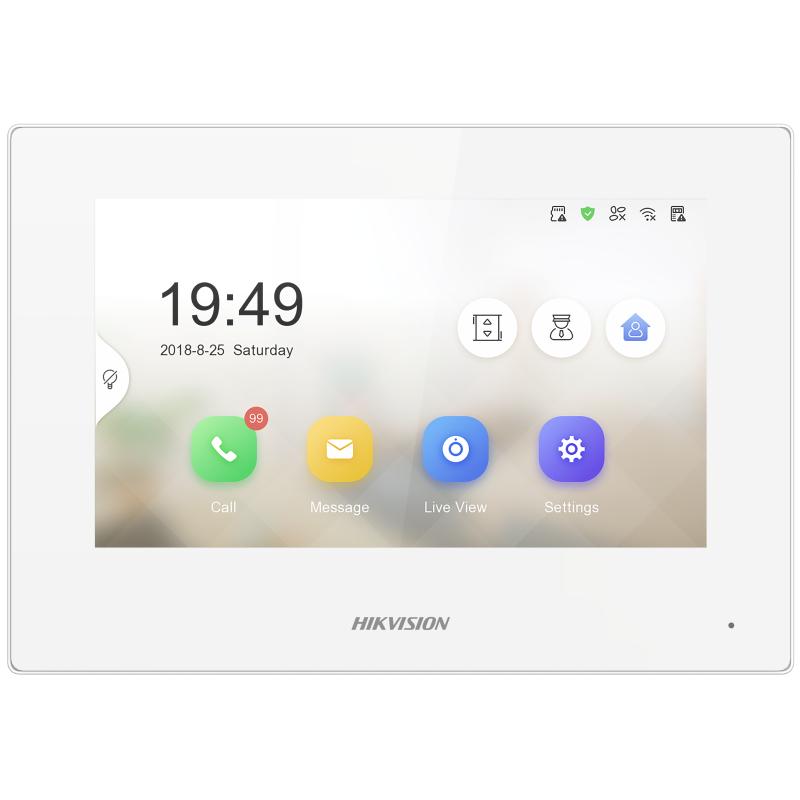

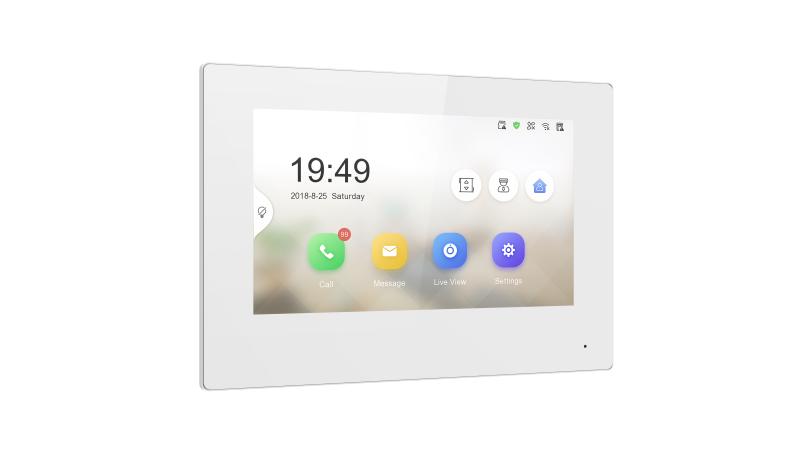

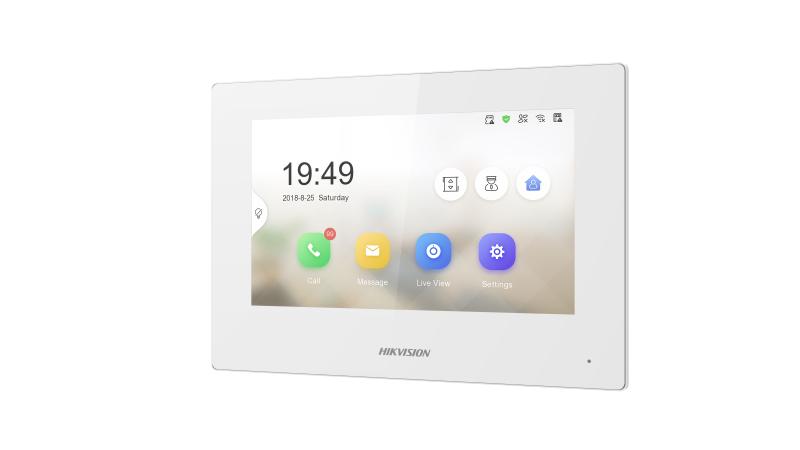

Hikvision 7 inch touch IP indoor station DS-KH6320-LE1(B)/White
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
System parameters
| Operating system | Linux |
| ROM | 32 MB |
| RAM | 128 MB |
| CPU | Embedded processor |
Display parameters
| Screen size | 7-inch |
| Operation method | Capactive touch |
| Type | TFT LCD |
| Resolution | 1024 × 600 |
Video parameters
| Lens | / |
| Resolution | / |
| FOV | / |
| WDR | / |
| Video compression standard | H.265；H.264 |
| Focal length | / |
Audio parameters
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity
| Event capacity | 200 captured pictures (with TF card); 200 alarm records 2 MB RAM (without TF card) reserved for events |
| Linked indoor extensions capacity | 16 |
| Linked network camera capacity | 16 |
| Linked doorphone capacity | 17 IP doorphones Max. |
Network parameters
| Communication protocol | TCP/IP, RTSP |
| Wired network | Support |
| Wi-Fi standard | / |
| Bluetooth version | / |
| 3G/4G standard | / |
| Zigbee | / |
Device interfaces
| Alarm input | 8 |
| Network interface | 1 RJ-45 10/100 Mbps self-adaptive |
| TAMPER | / |
| RS-485 | / |
| USB | / |
| TF card | / |
| Alarm output | / |
| Power interface | 1 (12VDC power input) |
General
| Button | / |
| Installation | Surface mounting, table mounting |
| Indicator | / |
| Protective level | / |
| Working temperature | -10 °C to 50 °C (14 °F to 133 °F) |
| Working humidity | 10% to 90% |
| Dimensions | 200 mm × 140 mm × 23.6 mm (7.87" ×5.51" × 0.93") |
| Battery | / |
| Power supply | IEEE802.3af, standard PoE 12 VDC |
| Application environment | Indoor |
| Power consumption | ≤ 3 W |
| Language | English, Arabic, French, Russian, Spanish, Spanish (Latin America), Italian, German, Polish, Turkish, Portuguese, Portuguese (Brazil), Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese |
