Hikvision

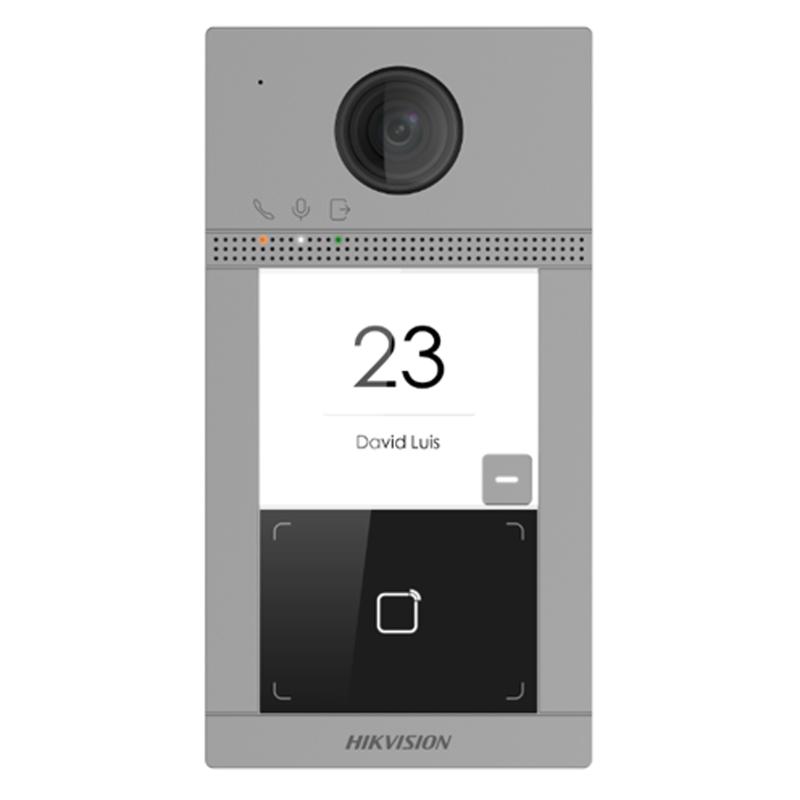

1 Button Metal Villa Door Station
SKU: DS-KV8113-WME1-B · 視像對講機
查詢報價
Hikvision 1 Button Metal Villa Door Station DS-KV8113-WME1(B)
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
System parameters
| Operating system | Embedded Linux operation system |
| ROM | 32 M |
| RAM | 256 M |
| CPU | Embedded MCU Processor |
Display parameters
| Screen size | / |
| Operation method | / |
| Type | / |
| Resolution | / |
Video parameters
| Lens | 1 |
| Resolution | Main stream : 1920 × 1080 Sub stream : 720 × 480 |
| FOV | Horizontal: 129° Vertical: 75° |
| WDR | Support |
| Supplement light | IR supplement |
| Video compression standard | H.264 |
Audio parameters
| Audio compression standard | G.711 U |
| Audio input | Built-in omnidirectional microphone |
| Audio output | Built-in loudspeaker (More than 85 dB within 20 cm) |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity
| User capacity | / |
| Face capacity | / |
| Card capacity | / |
| Linked indoor station capacity | 1 |
Network parameters
| Communication protocol | TCP/IP, RTSP |
| Wired network | 10/100 Mbps self-adaptive Ethernet |
| Wi-Fi standard | / |
| Bluetooth version | / |
| 3G/4G standard | / |
Device interfaces
| Alarm input | 4 |
| Network interface | 1 |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| USB | 0 |
| Wiegand | 0 |
| TF card | 0 |
| Alarm output | 0 |
| Lock control | 2 |
| Door contact input | 2 |
| Power interface | 1 |
Performances
| Multi-factor authentication | 2000 |
General
| Button | 1 |
| Installation | Surface mounting |
| Indicator | 3 |
| Protective level | IP65, IK08 |
| Working temperature | -40° C to +55° C(-40° F to 131° F) |
| Working humidity | 10% to 95% |
| Dimensions | 174 mm × 91 mm × 29 mm |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, French, Portuguese (Brazil), Spanish, Russian, German, Italian, Polish, Arabic, Turkish, Vietnamese, Hungarian, Dutch, Romanian, Czech, Bulgarian, Ukrainian, Croatian, Serbian, Portuguese, Slovak |
