Hikvision
4 Buttons Metal Villa Door Station
SKU: DS-KV8413-WME1-C · 視像對講機
查詢報價

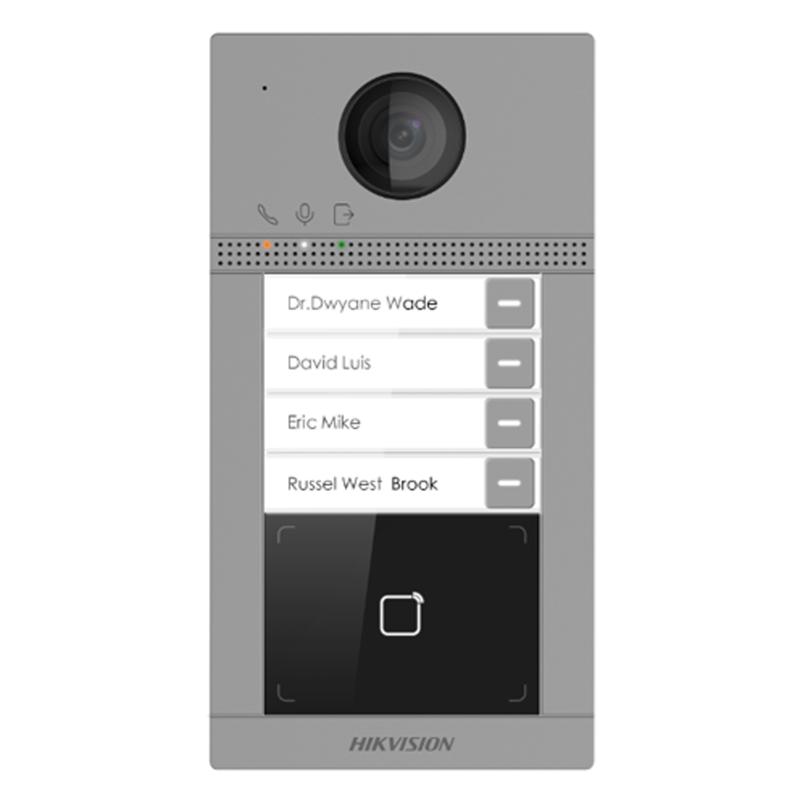

Hikvision 4 Buttons Metal Villa Door Station DS-KV8413-WME1(C)
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
System parameters
| Operation system | Linux |
| ROM | 32 MB |
| RAM | 256 MB |
| Processor | Embeded high performance processor |
Display parameters
| Screen size | / |
| Operation method | / |
| Type | / |
| Resolution | / |
Video parameters
| Lens | 1 |
| Resolution | Main stream:1920p × 1080 and 1280 × 720p Sub stream: 640 × 480p |
| FOV | Horizontal: 124° Vertical: 75° |
| Wide dynamic range (WDR) | Digital WDR/76.9 dB |
| Supplement light | IR light, up to 3 m |
| Video compression standard | H.264; H.265; MJPEG |
Audio parameters
| Audio input | 1 built-in omnidirectional microphone |
| Audio compression standard | G.711 U、G.711 A、Opus、AAC-LD、AAC-LC、G.726、G.722.1 |
| Audio output | 1 built-in loudspeaker |
| Audio compression bitrate | 64 Kbps |
| Audio quality | Noise suppression and echo cancellation |
| Volume adjustment | Adjustable |
Capacity
| User capacity | 2000 |
| Card capacity | 10000 |
| Linked indoor station capacity | 4 (main indoor station) |
| Sub door station capacity | 16 |
Network parameters
| Network protocol | TCP/IP, RTSP, IPV6, ONVIF |
| Wi-Fi | IEEE802.11b, IEEE802.11g, IEEE802.11n |
| Bluetooth | / |
| 3G/4G | / |
| Received frequency | 2.4 to 2.4835 GHz |
| Transmitted frequency | 2.4 to 2.4835 GHz |
| Bandwidth | 20/40 MHz |
| Frequency power | 802.11b:15 dBm +/- 1.5 dBm 802.11g:15 dBm +/- 1.5 dBm 802.11n(ht20):14 dBm +/- 1.5 dBm 802.11n(ht40):12 dBm +/- 1.5 dBm |
Authentication
| Card reading frequency | 13.56 MHz |
Device interfaces
| Alarm input | 4 |
| Network interface | 1 RJ-45, 10/100 Mbps self-adaptive |
| TAMPER | 1 |
| Exit button | 2 |
| RS-485 | 1 |
| USB | / |
| Wiegand | / |
| TF card | Reserved |
| Alarm output | / |
| Lock control | 2 relays, Max. 30 VDC 2 A |
| Door contact input | 2 |
General
| Button | 4 physical buttons |
| Installation | Surface mounting |
| Indicator | 3 |
| Protective level | IP65, IK08 |
| Working temperature | -40 °C to 53 °C(-40 °F to 127.4 °F) |
| Working humidity | 10% to 95% (no-condensing) |
| Dimension (W × H × D) | 174 mm × 91 mm × 29 mm (6.9" × 3.6" × 1.1") |
| Battery | / |
| Application environment | Outdoor |
| Power consumption | ＜ 10 W |
| Language | English, Arabic, European French, Russian, European Spanish, Latin American Spanish, Italian, German, Polish, Turkish, Portuguese, Brazilian Portuguese, Uzbek, Kazakh, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek, Lithuanian, Estonian, Latvian, Norwegian, Danish, Slovenian, Slovak, Hebrew, Swedish, Finnish, Mongolian, Vietnamese, Traditional Chinese (Taiwan), Latin American Spanish |
