Ubiquiti
Access Point E7 Campus
SKU: E7-Campus · Wi-Fi 無線接取器
查詢報價
Enterprise-grade indoor/outdoor access point with 10-stream tri-band WiFi 7 performance, PRISM™ active RF filtering technology, integrated directional antennas, a 10 GbE uplink, and a redundant GbE port for high availability.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
WiFi 7 with 6 GHz support 10 spatial streams Real-time spectral analysis for enhanced channel selection High selectivity PRISM™ RF filtering technology Dedicated spectral analyzer radio Directional high gain antenna array Long-range 6 GHz performance with AFC* 465 m² (5,000 ft²) coverage 1,000+ connected devices (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility Powered using PoE++ Note. 6 GHz operation is supported in these countries . *Available in FCC/IC region only.
規格
Grid overview
| Max. Client Count | 1,000 |
| WiFi7 | WiFi 7 |
| Radio/Antenna | 6 GHz Radio |
| Uplink | 10 GbE |
Overview

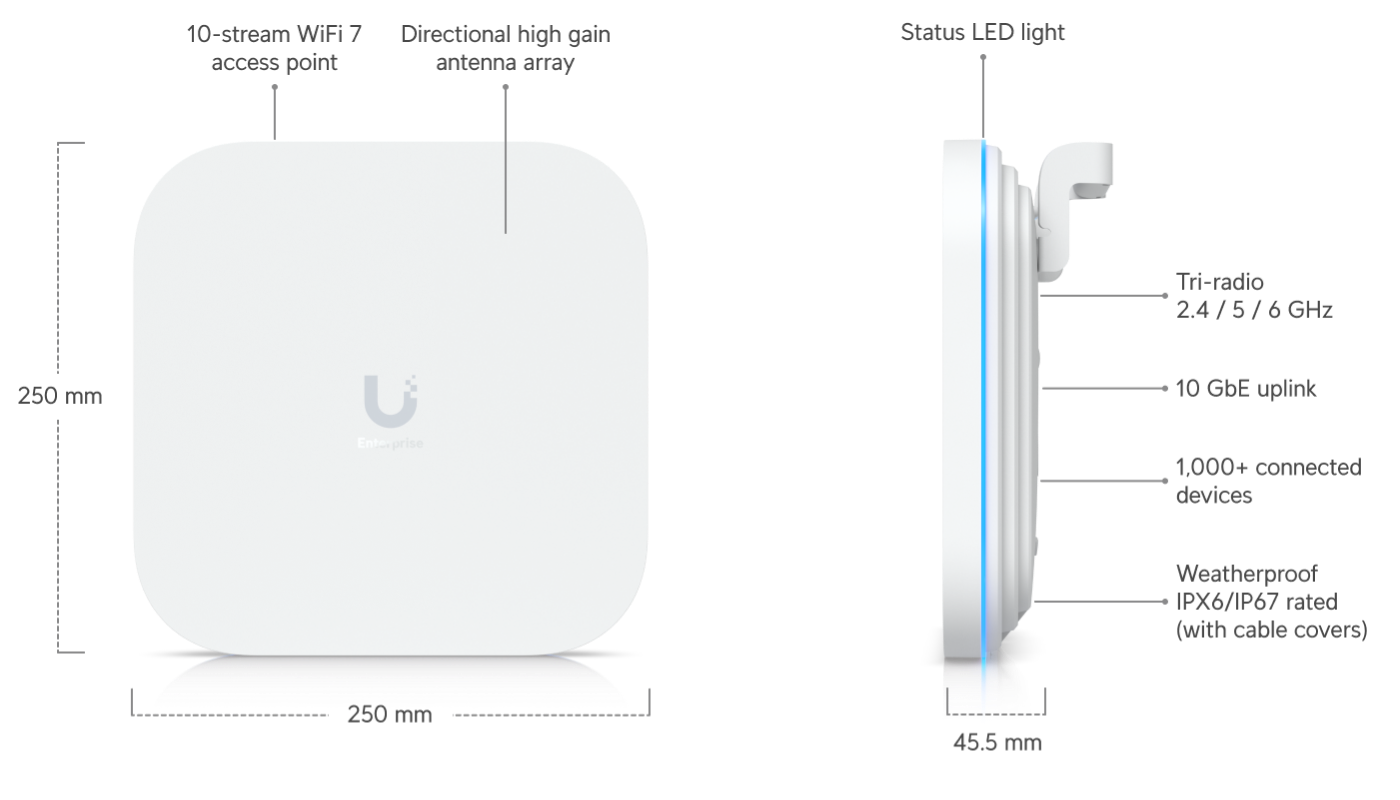

| Dimensions | Device: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8") Articulating mount: ⌀104 x 149.4 (⌀4.1 x 5.9") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 10 |
| Coverage Area | 465 m² (5,000 ft²) |
| Max. Client Count | 1000+ |
| Uplink | 10 GbE 1 GbE |
| Mounting | Wall, Pole (Mounts Included) VESA (Optional) |
| Weatherproofing | IPX6 IP67 with Waterproof Door Kit (Included) |
| Power Method | PoE++ |
Performance
| 6 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 6 GHz | 11.5 Gbps (BW320) |
| 5 GHz | 8.6 Gbps (BW240) |
| 2.4 GHz | 688 Mbps (BW40) |
| 6 GHz | Directional internal: 12 dBi, 90° x 50° |
| 5 GHz | Directional internal: 12 dBi, 100° x 55° |
| 2.4 GHz | Directional internal: 9 dBi, 90° x 80° |
| 6 GHz | 30 dBm (36 dBm EIRP) |
| 5 GHz | 30 dBm |
| 2.4 GHz | 23 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11be (WiFi 7) | 7.3 Mbps to 11.4 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320) |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) |
Features
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Zero-Wait DFS | Yes |
| Advanced Radio Management | Yes |
| Real-Time Spectral Analysis | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Custom Branding Landing Page | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
Hardware
| Max. Power Consumption | 44W |
| Supported Voltage Range | 42.5–57V DC |
| Networking Interface | (1) 10 GbE RJ45 port (1) GbE RJ45 port |
| PRISM™ RF Filtering | Yes |
| Weight | Device: 2.2 kg (4.9 lb) With articulating mount: 3.1 kg (6.8 lb) |
| Wind Loading | 164.75 N at 200 km/h (37 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Antennas | (1) Internal with directional patterns |
| 6 GHz | 90° x 50° |
| 5 GHz | 100° x 55° |
| 2.4 GHz | 90° x 80° |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel, aluminum alloy |
| System | R/G/B |
| NDAA Compliant | Yes |
| Certifications | FCC, IC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz U-NII-5 and U-NII-7: 5925 - 6425 MHz, 6525 - 6875 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz 5925 - 7125 MHz |
| Ambient Operating Temperature | -30 to 60° C (-22 to 140° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 9.0.114 and later |
| Mobile App | iOS™ version 10.20.0 and later Android™ version 10.21.3 and later |
