Ubiquiti
Switch Enterprise Campus 48 PoE
SKU: ECS-48S-PoE · 網路交換機
查詢報價
Enterprise-grade 48-port, Layer 3 Etherlighting™ PoE+++ switch with Stacking support and high-capacity 10 GbE RJ45 and 25G SFP28 connections for high availability system design.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

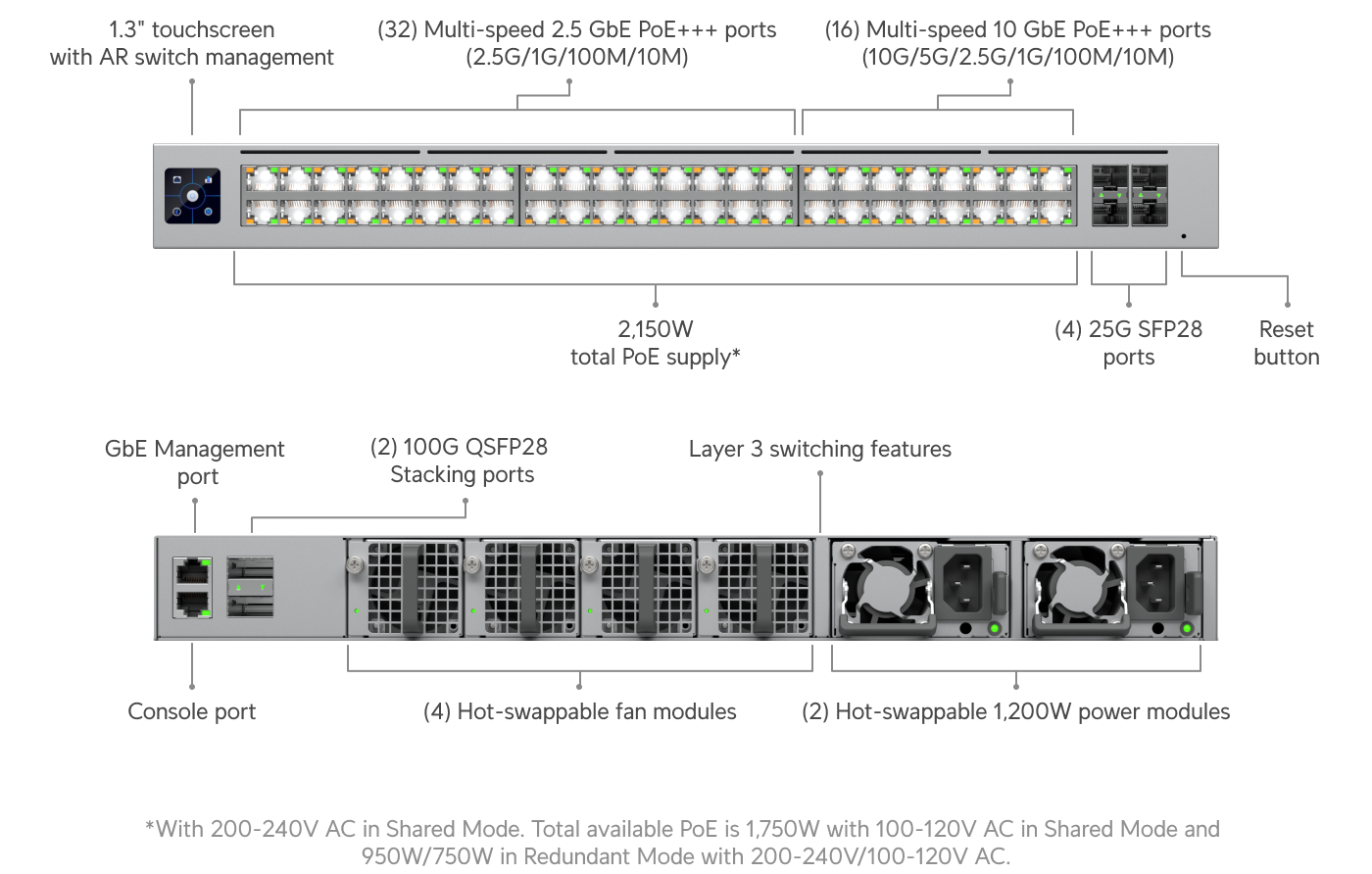

(16) 10 GbE, (32) 2.5 GbE ports, all PoE+++ (90W capable) (4) 25G SFP28 ports (2) 100G QSFP28 ports for Stacking Up to 2,150W PoE availability* (2) included hot-swappable power modules (4) included hot-swappable fan modules with one backup (1) GbE management and (1) console port Note. Recommend being paired with Enterprise Campus Aggregation. *Requires shared mode.
規格
Overview
| Dimensions | 442.4 x 44 x 496 mm (17.4 x 1.7 x 19.5") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 2.5 GbE RJ45 | 32 (All PoE+++) (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 16 (All PoE+++) (10G/5G/2.5G/1G/100M/10M) |
| 25G SFP28 | 4 (25G/10G/1G) |
| 100G QSFP28 | 2 (100G) |
| Console | 1 |
| Max. PoE Output | Up to PoE+++ |
| Total PoE Availability | 200-240V AC Shared Mode: 2,150W 100-120V AC Shared Mode: 1,750W 200-240V AC Redundant Mode: 950W 100-120V AC Redundant Mode: 750W |
| Redundancy | Switch Stacking (2) Hot-Swappable PSUs (4) Hot-Swappable Fans |
| Layer 3 | Yes |
| Form Factor | Rack Mount (1U, Full-Depth) |
| Etherlighting™ | Yes |
Performance
| Switching Capacity | 680 Gbps |
| Total Non-Blocking Throughput | 340 Gbps |
| Forwarding Rate | 506 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| ARP Entries | 128,000 |
| IPv4 Routes | 256,000 |
| IPv4 Static Routes | 512 |
| Packet Buffer Size | 8 MB |
| IPv4 | 256 |
| MAC | 256 |
Layer 3 Features
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
Layer 2 Features
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
Hardware
| PoE+++ | 48 |
| PoE | 15.4W |
| PoE+ | 30W |
| PoE++ | 60W |
| PoE+++ | 90W |
| Max. Power Consumption | 250W (Excluding PoE Output) 2,400W (Including PoE Output) |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 1,200W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet OOB Management port Serial Console AR |
| Heat Dissipation | 853 BTU/hr (Excluding PoE Output) |
| Weight | Without mounting brackets: 9.5 kg (20.9 lb) With mounting brackets: 9.6 kg (21.1 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| Fan Method | (4) Hot-swappable fan modules |
| ESD Protection | Air: ± 30kV, contact: ± 19kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | Yes |
| SFP28 | Yes |
| Ethernet | Yes |
| SFP28 | Yes |
| System | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
