Ubiquiti
Switch Enterprise Campus Aggregation
SKU: ECS-Aggregation · 網路交換機
1.8 Tbps high-density 100G/25G Layer 3 Etherlighting™ aggregation switch with MC-LAG support for high availability system design.
HK$42,000 ● ERPNext 即時價
登入睇商戶／批發價 → ● 供應中（落單後確認交期）
- 7 日退貨保證（全新未拆）
- 1–2 個工作天發貨
- 滿 HK$2,000 免費送貨
- 安全結帳
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

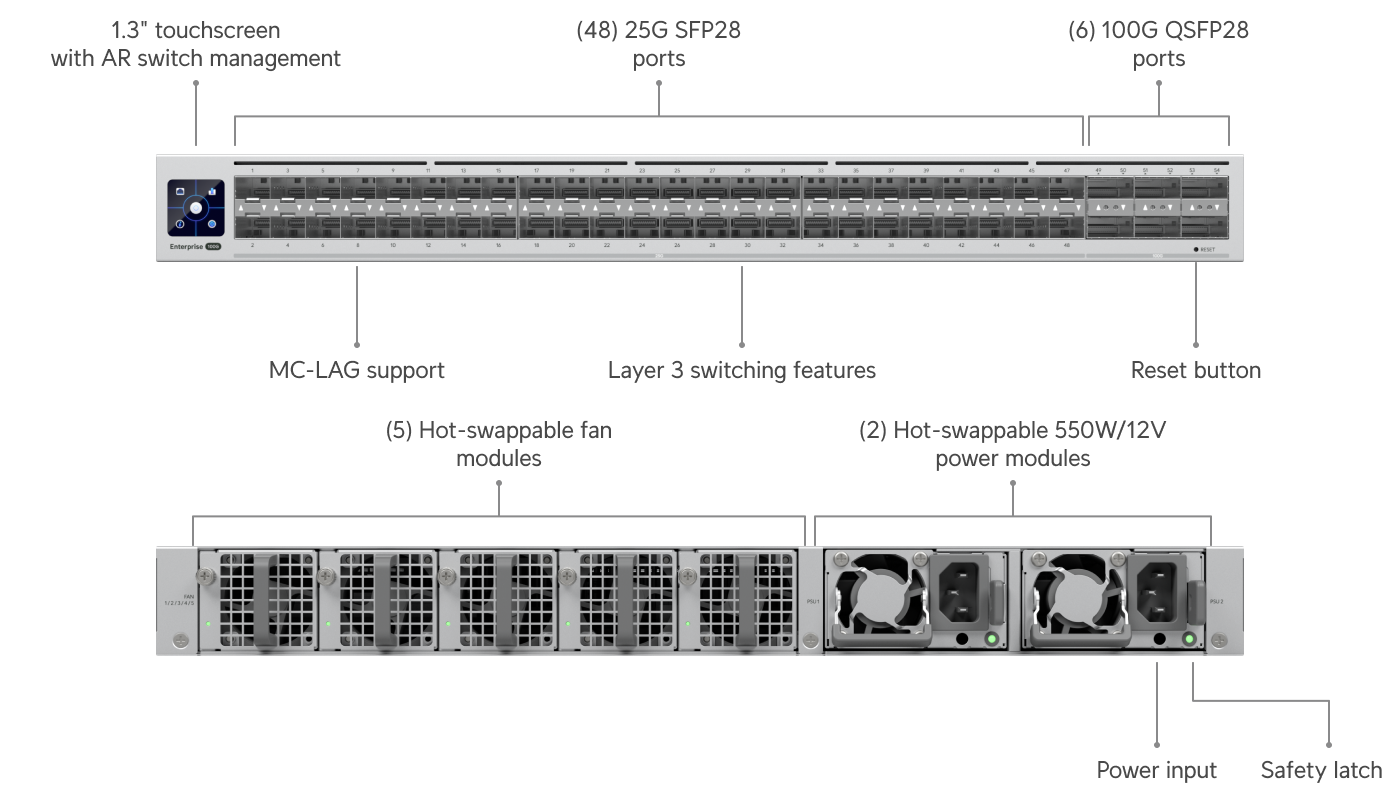

(48) 25G SFP28 and (6) 100G QSFP28 ports Multi-Chassis Link Aggregation (MC-LAG) support* Layer 3 automatic failover (VRRP) support** BGP Dynamic Routing*** (2) included hot-swappable power modules, with 1 + 1 redundancy**** (5) included hot-swappable fan modules, with 4 + 1 redundancy *Must be paired with another Enterprise Campus Aggregation. **Scheduled for the next UniFi Network Application release. ***OSPF support is scheduled for an upcoming UniFi Network Application release. ****The second module is not pre-installed and ships in separate packaging.
規格
Overview
| Dimensions | 442.4 x 43.7 x 496 mm (17.4 x 1.7 x 19.5") |
| 25G SFP28 | 48 (25G/10G) |
| 100G QSFP28 | 6 (100G/40G) |
| Redundancy | Multi-Chassis Link Aggregation (MC-LAG) (2) Hot-Swappable PSUs (5) Hot-Swappable Fans |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U, Full-Depth) |
| Etherlighting™ | Yes |
Performance
| Switching Capacity | 3.6 Tbps |
| Total Non-Blocking Throughput | 1.8 Tbps |
| Forwarding Rate | 2.4 Bpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 128,000 |
| ARP Entries | 96,000 |
| IPv4 Routes | 288,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 24 MB |
| IPv4 | 512 |
| MAC | 512 |
Layer 3 Features
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
Layer 2 Features
| LACP Port Aggregation | Yes |
| MC-LAG | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
Hardware
| Max. Power Consumption | 340W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | (2) AC input, Hot-swappable power modules |
| Power Supply | (2) Hot-swappable AC/DC 550W power modules |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 1160 BTU/hr |
| Weight | Without mounting brackets: 9.9 kg (21.8 lb) With mounting brackets: 10 kg (22 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air: ± 12kV, contact: ± 8kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 95% noncondensing |
| SFP28 | Yes |
| QSFP28 | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 01327-25-08356 |
Software
| UniFi Network | Version 8.5.6 and later |
