Ubiquiti
Enterprise NVR
SKU: ENVR · CCTV 錄影機
查詢報價
3U NVR with (16) 2.5/3.5” drive bays, supporting up to (70) 4K cameras or (210) Full HD cameras.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

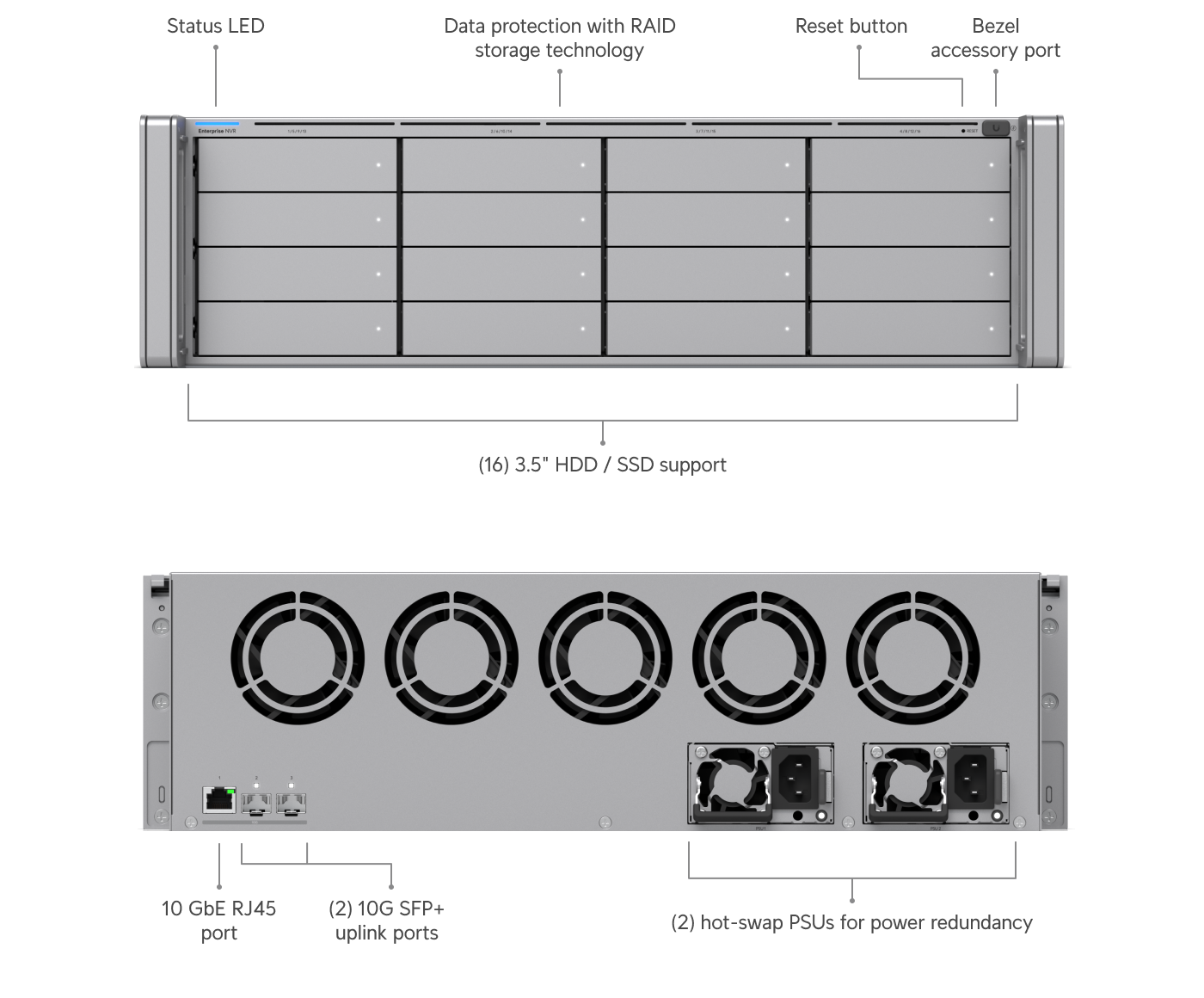

(16) 3.5" HDD / SSD support (2) 10G SFP+ uplinks and (1) 10 GbE RJ45 port Data protection with RAID storage technology (2) included hot-swap PSUs for power redundancy
規格
Grid overview
| Managed Cameras (grid) | 210 HD or 70 4K |
| Ports | 1 10 GbE + 2 SFP+ |
| Power | 2 Hot-Swap PSUs |
| Security | RAID Protection |
| Storage | 16 3.5" HDD / SSD |
| App Suite | UniFi Protect |
Overview
| Dimensions | 481.4 x 480 x 132 mm (19 x 18.9 x 5.2") |
| Managed Cameras | (210) HD (140) 2K (70) 4K |
| Managed Access Hubs | 300 |
| Storage Capacity | (16) 3.5" drive bays |
| Data Protection | Yes |
| Vantage Point | Yes |
| Networking Interface | (2) 10G SFP+ ports (1) 10 GbE RJ45 port |
| Power Redundancy | Yes |
| Form Factor | Rack Mount (3U) |
| Door Access Support | Yes |
| Management Application | UniFi Protect UniFi Access |
Hardware
| Hard Drive Capacity | (16) 2.5/3.5" HDD / SSD support |
| Max. Power Budget for Drives | 310W |
| Max. Power Consumption | 410W |
| Power Method | (2) AC input, 100–240V, 7A Max., 50/60Hz (Redundant, hot-swappable) |
| Power Supply | Hot-swappable 550W CRPS |
| Processor | 8-core ARM® at 2.5 GHz |
| Memory | 32 GB |
| Management | Ethernet |
| Display | Bezel (Optional) |
| Weight | Without rails: 16.6 kg (36.6 lb) With rails: 19.5 kg (43.0 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | Aluminum |
| Slide Rails | 482.6 mm (19") four-post racks Posts depths ranging from 650 to 1,000 mm (25.6–39.4”) |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
