Ubiquiti
Access Point U6 Extender
SKU: U6-Extender · Wi-Fi 無線接取器
查詢報價
Easy-to-deploy WiFi 6 coverage extender that fits a standard wall outlet.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

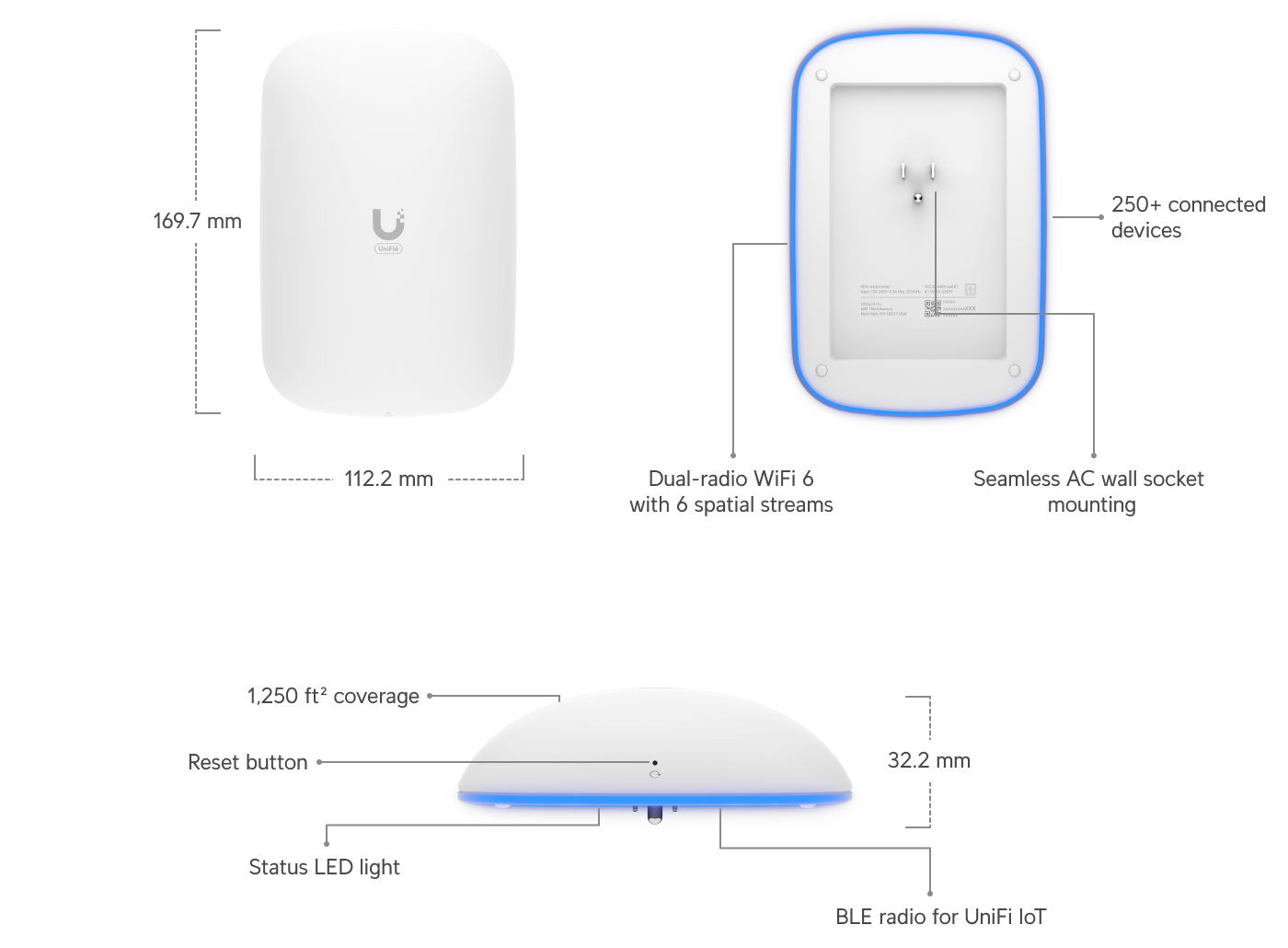

WiFi 6 6 spatial streams 115 m² (1,250 ft²) coverage 250+ connected devices Powered with standard AC wall outlet Wireless uplink to UniFi WiFi Note. Cannot be set up standalone and requires UniFi WiFi managed by a UniFi Console or self-hosted UniFi Network Server.
規格
Grid overview
| Max. Client Count | 250 |
| WiFi6 | WiFi 6 |
Overview
| Dimensions | US: 169.7 x 112.2 x 32.2 mm (6.7 x 4.4 x 1.3") EU: 169.7 x 112.2 x 77.6 mm (6.7 x 4.4 x 3.1") |
| WiFi Standard | WiFi 6 |
| Spatial Streams | 6 |
| Coverage Area | 115 m² (1,250 ft²) |
| Max. Client Count | 250+ |
| Mounting | Wall (Wall Power Socket Included) |
| Power Method | Universal AC input, 100–240V AC, 0.3A Max., 50/60 Hz |
Performance
| 5 GHz | 4 x 4 (DL/UL MU-MIMO) |
| 2.4 GHz | 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz | 4.8 Gbps (BW160) |
| 2.4 GHz | 573.5 Mbps (BW40) |
| 5 GHz | 6 dBi |
| 2.4 GHz | 5 dBi |
| 5 GHz | 26 dBm |
| 2.4 GHz | 22 dBm |
| Max. BSSIDs | 8 per Radio |
| 802.11ax (WiFi 6) | 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) |
| 802.11ac (WiFi 5) | 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) |
| 802.11n | 6.5 Mbps to 600 Mbps (MCS0 - MCS31 , HT 20/40) |
Features
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Custom Branding Landing Page | Yes |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
Hardware
| Max. Power Consumption | 11W |
| Supported Voltage Range | 110—240V AC |
| Weight | US: 290 g (10.2 oz) EU: 340 g (12 oz) |
| Management | Bluetooth |
| Enclosure Material | Polycarbonate |
| System | White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Operating Frequency | US/CA: 2400 - 2472 MHz U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide: 2400 - 2483.5 MHz 5150 - 5850 MHz |
| Ambient Operating Temperature | -10 to 50° C (14 to 122° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Software
| UniFi Network | Version 6.0.45 and later |
