Ubiquiti
Access Retrofit Reader
SKU: UA-Retrofit-Reader · 門禁讀卡器
查詢報價

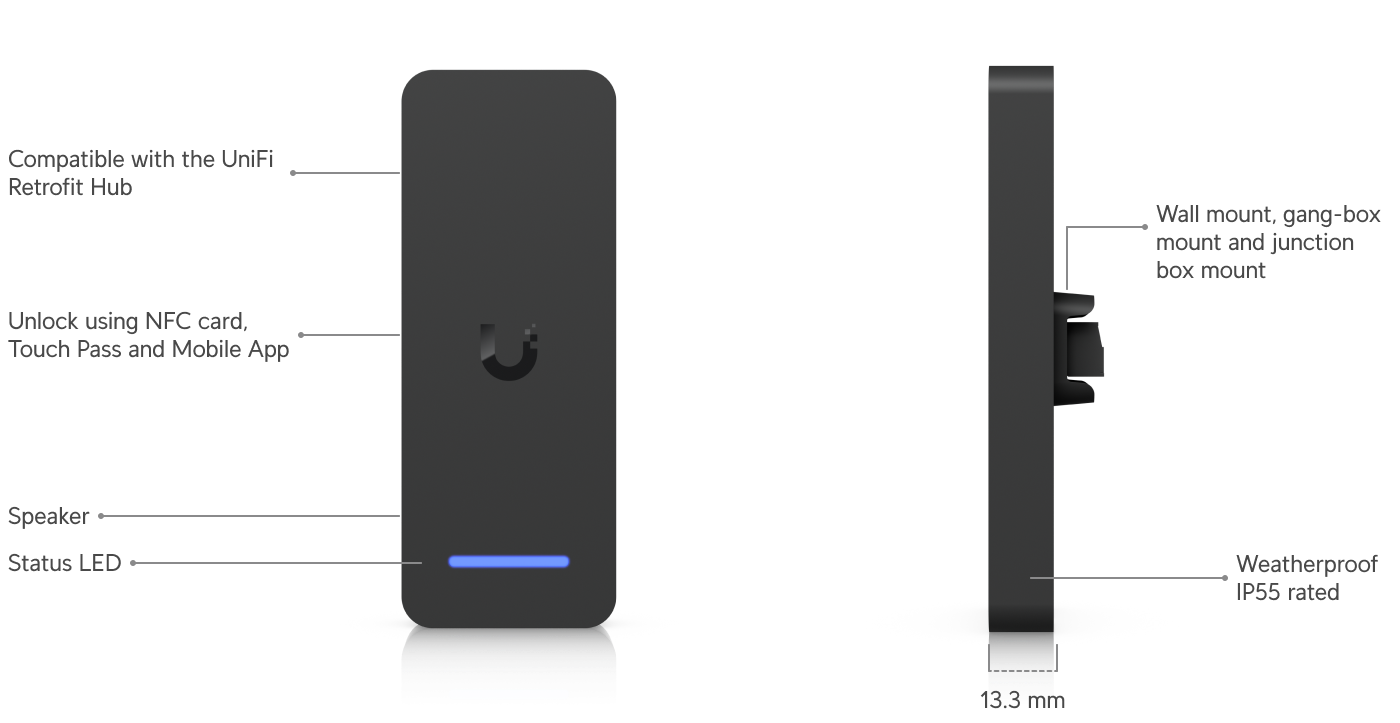

Indoor/outdoor OSDP reader with NFC Card and Touch Pass support, compatible with the UniFi Retrofit Hub using existing cabling.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
規格
Grid overview
| Apple | Touch Pass |
| NFC | NFC |
| Weatherproof | Outdoor Exposed |
Overview
| Dimensions | 117 x 45 x 13.3 mm (4.6 x 1.8 x 0.5") |
| NFC Card & Keyfob Access | Yes |
| Apple/Google Wallet | Yes |
| Mobile Unlock | Yes |
| NDAA Compliant | Yes |
| Weatherproofing | IP55 |
Mechanical
| Weight | 82 g (2.9 oz) |
| Enclosure Material | Polycarbonate, aluminum alloy |
| Mount Material | Stainless steel |
| Mounting | Wall, gang-box mount (Included) Junction box (Optional) |
Hardware
| Indoor and Outdoor Use | Yes |
| Connectivity | RS-485 BLE 4.1 NFC |
| Security | OSDP v2 |
| Power Method | DC 12V |
| Max. Power Consumption | 2.5W |
| Supported Voltage Range | 12V DC |
| ESD/EMP Protection | Air: ± 15kV, contact: ± 8kV |
| Speaker | Yes |
| LEDs | R/G/B/W <a href="https://help.ui.com/hc/en-us/articles/25738084762775-UniFi-Access-Understand-Access-Device-LED-Status-Indicators" target="_blank" rel="noopener noreferrer">Learn More</a> |
| Button | (1) Factory reset |
| NFC Frequency | 13.56 MHz |
| NFC Read Range | < 30 mm (1.18'') |
| NFC Technology | ISO 14443A, 14443B, 15693 NFC Tag 1,2,3,4,5 MIFARE Classic MIFARE Plus MIFARE Ultralight MIFARE DESFire |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 50° C (-22 to 122° F) |
| Ambient Operating Humidity | 5 to 90% noncondensing |
Software
| Management Application | Access |
| Software Information | The software version can be checked at <a href="https://unifi.ui.com/" target="_blank" rel="noopener noreferrer">https://unifi.ui.com</a> |
