Ubiquiti
Building-to-Building Bridge XG
SKU: UBB-XG · WiFi 橋接
查詢報價
60 GHz wireless point-to-point bridge with a 10G SFP+ uplink for maximum performance and a 5 GHz backup radio.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

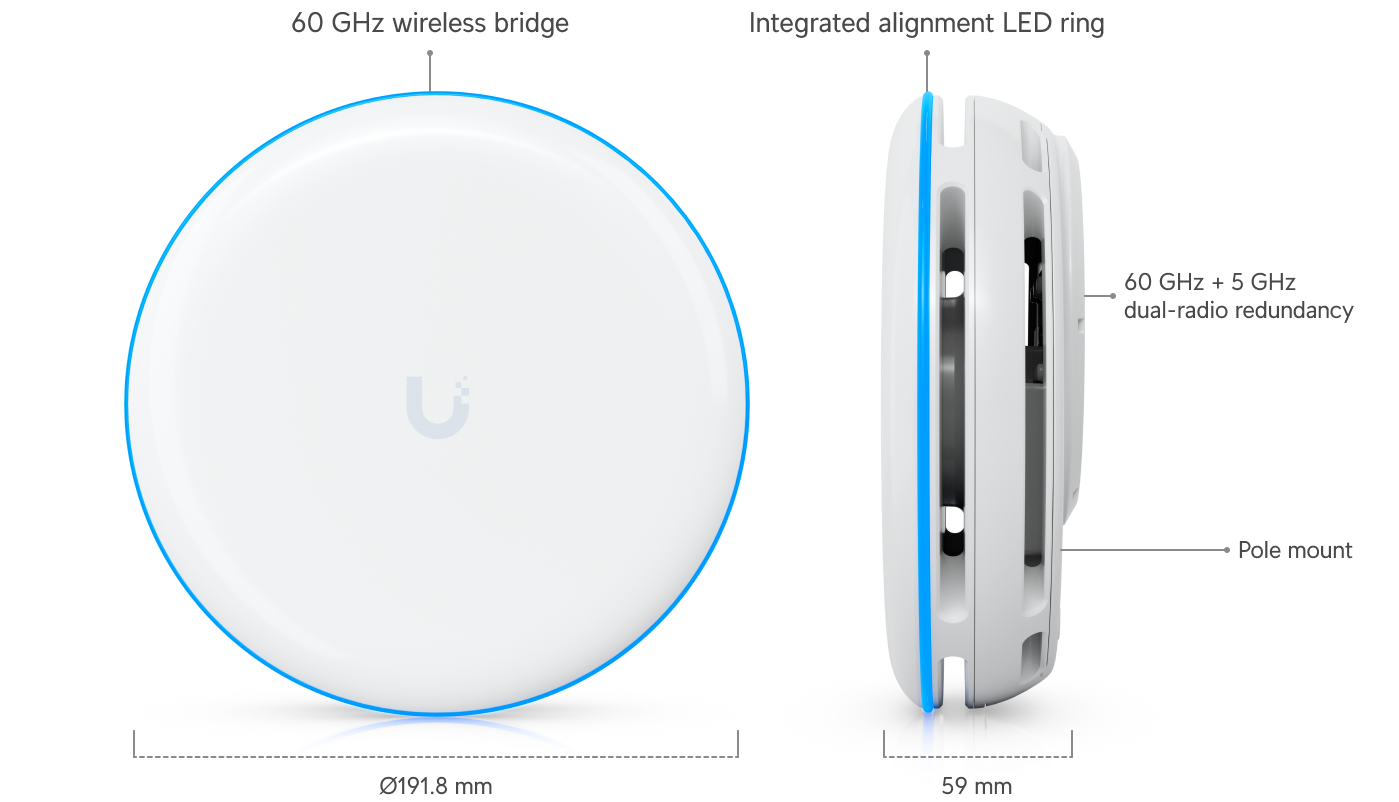

500 m (1,640 ft) maximum range 60 GHz & 5 GHz dual-radio redundancy (1) 10G SFP+ and (1) GbE PoE++ port Powered using PoE++* Built-in LED alignment indicators
規格
Overview
| Dimensions | ⌀191.8 x 59 mm (⌀7.6 x 2.3") |
| WiFi Standard | WiFi 5 |
| Spatial Streams | 2 |
| Coverage Area | 500 m (1,640 ft) |
| Mounting Locations | Wall, pole |
| Weatherproofing | IPX6 |
| Power Method | PoE++ Passive PoE |
Performance
| 5 GHz | 2 x 2 (DL MU-MIMO) |
| 60 GHz | 6 Gbps |
| 5 GHz | 866.6 Mbps (BW80) |
| 60 GHz | 21 dBi |
| 5 GHz | 14 dBi |
| 2.4 GHz | 2 dBi (BLE) |
| 60 GHz | 16 dBm |
| 5 GHz | 23 dBm |
| 802.11ac (WiFi 5) | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Security | WPA2 AES |
Hardware
| Max. Power Consumption | 29W |
| Includes PoE Adapter | Yes |
| Supported Voltage Range | 48V DC ± 10% |
| Networking Interface | (1) GbE RJ45 port (1) 1/10G SFP+ port |
| Weight | Device: 1.7 kg (3.8 lb) With mount: 2.9 kg (6.3 lb) |
| Operating Modes | PtP |
| Wind Loading | 56 N at 200 km/h (12.6 lbf at 125 mph) |
| Pole Mount Diameter | 1–2.5" (25–63.5 mm) |
| Management | Ethernet Bluetooth |
| Channel Bandwidth | Main radio (60 GHz): 1,080/2,160 MHz Backup radio (5 GHz): HT 20/40 MHz, VHT 20/40/80 MHz |
| Enclosure Material | Aluminum alloy, UV-resistant polycarbonate |
| Mount Material | Stainless steel |
| Button | (1) Factory reset |
| System | R/G/B |
| Operating Frequency | Main radio (60 GHz): 57 - 66 GHz Backup radio (5 GHz): US/CA U-NII-1: 5150 - 5250 MHz U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 MHz Worldwide 5150 - 5850 MHz |
| Bluetooth (MHz) | Worldwide: 2400 - 2483.5 MHz |
| Ambient Operating Temperature | -40 to 55° C (-40 to 131° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Terragraph |
