Ubiquiti
UPS PoE Switch Mission Critical
SKU: USW-Mission-Critical · 網路交換機
查詢報價
A switch with an integrated 368Wh lithium-ion battery capable of providing uninterruptible PoE to 8 devices.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

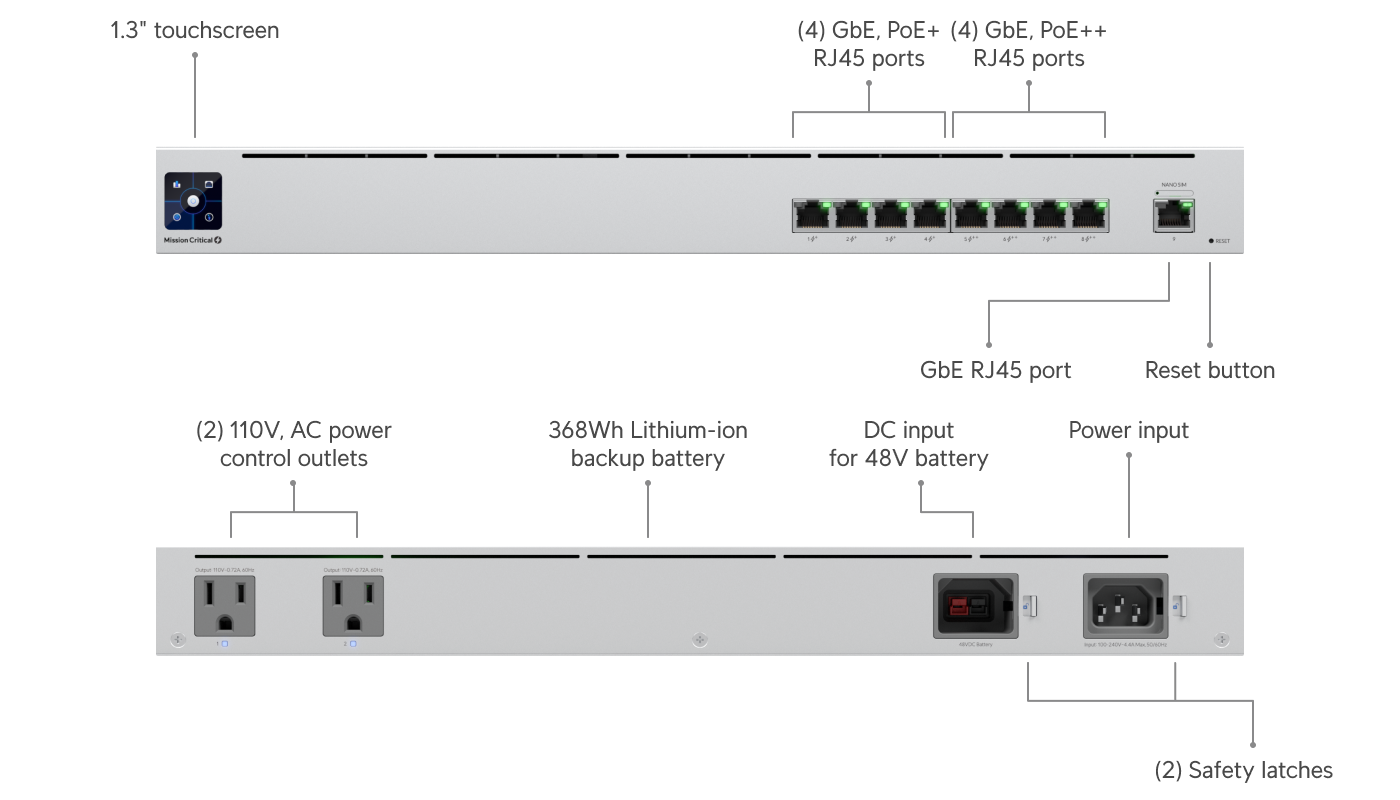

(4) GbE PoE+, (4) GbE PoE++ ports (1) GbE port (2) 110V AC outputs; 120W total PoE available Battery backup power system Internal battery 368Wh
規格
Overview
| Dimensions | 442 x 480 x 44 mm (17.4 x 18.9 x 1.7") |
| 1 GbE RJ45 | 9 (4 PoE+, 4 PoE++) (1G/100M/10M) |
| Max. PoE Output | Up to PoE++ |
| Total PoE Availability | 120W |
| Redundancy | Battery Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 18 Gbps |
| Total Non-Blocking Throughput | 9 Gbps |
| Forwarding Rate | 13 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 8,000 |
| Packet Buffer Size | 0.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Layer 2 Features
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
Hardware
| PoE+ | 4 |
| PoE++ | 4 |
| PoE+ | 32W |
| PoE++ | 64W |
| Max. Power Consumption | 50W (Excluding PoE Output) 240W (Including PoE Output and AC Output) |
| Power Method | Universal input, 100–240V AC, 50/60 Hz External battery input, 48V DC |
| Power Input Method | AC input DC input (Backup) |
| Power Supply | AC/DC, internal, 240W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 170.6 BTU/hr (Excluding PoE Output) |
| Weight | Without mount: 9 kg (19.9 lb) With mount: 9.2 kg (20.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 482.6 mm (19") four-post racks Posts depths ranging from 700 to 1,000 mm (27.6–39.4”) |
| LCM Display | 1.3" touchscreen |
| ESD Protection | Air/contact: ± 24kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 06679-25-08356 |
Software
| UniFi Network | Version 6.2.26 and later |
