Ubiquiti
Switch Pro HD 24
SKU: USW-Pro-HD-24 · 網路交換機
查詢報價

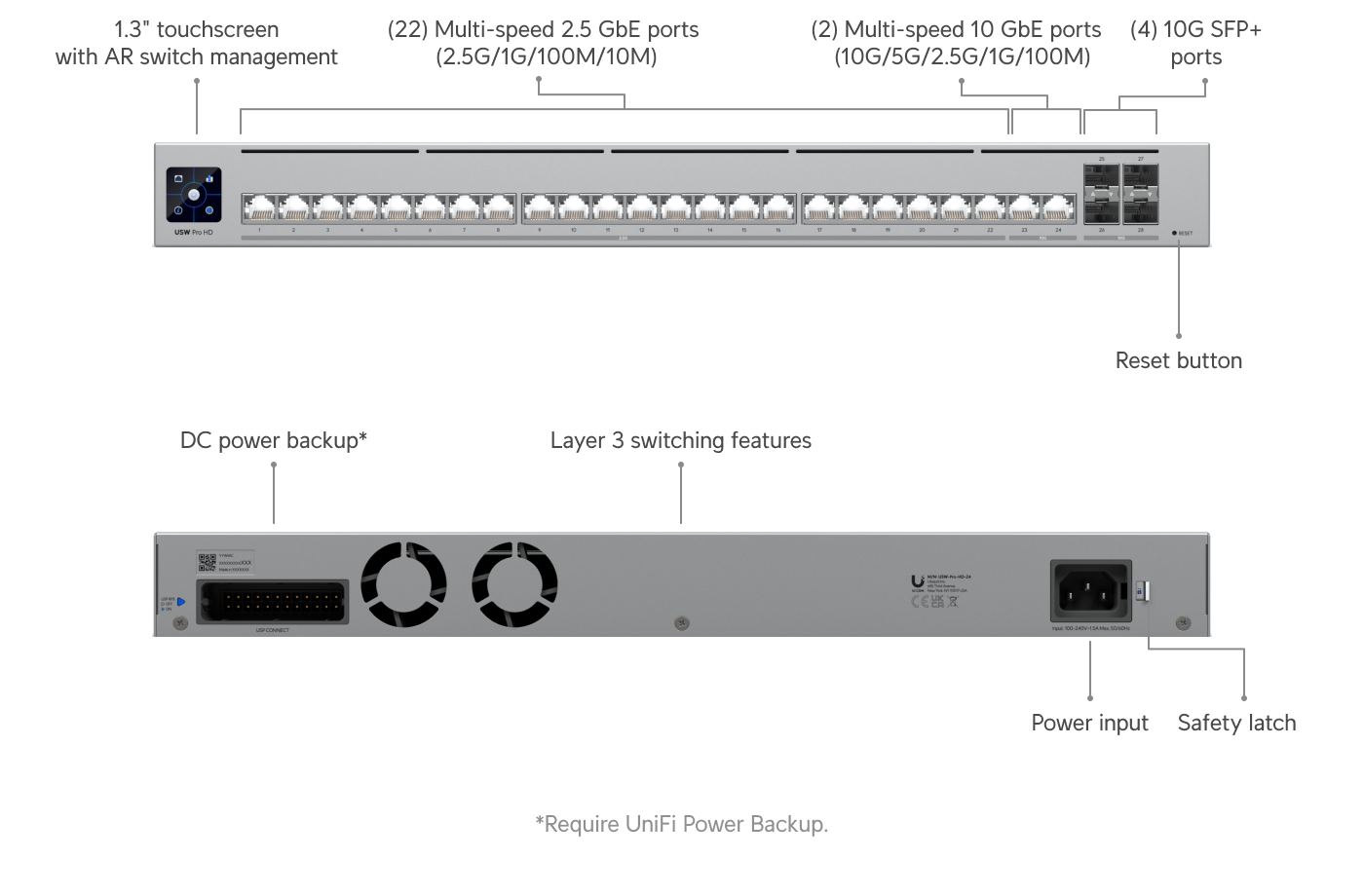

Professional-grade, Layer 3 Etherlighting™ switch with (2) 10 GbE, (22) 2.5 GbE, and (4) 10G SFP+ ports.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽
Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (22) 2.5 GbE, (2) 10 GbE ports (4) 10G SFP+ ports DC power backup ready** *Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires UniFi RPS .
規格
Overview
| Dimensions | 442 x 285 x 44 mm (17.4 x 11.2 x 1.7") |
| 2.5 GbE RJ45 | 22 (2.5G/1G/100M/10M) |
| 10 GbE RJ45 | 2 (10G/5G/2.5G/1G/100M) |
| 10G SFP+ | 4 (10G/1G) |
| Redundancy | DC Power Backup |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U) |
| Etherlighting™ | Yes |
Performance
| Switching Capacity | 230 Gbps |
| Total Non-Blocking Throughput | 115 Gbps |
| Forwarding Rate | 171.12 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 32,000 |
| ARP Entries | 12,000 |
| IPv4 Routes | 12,000 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 2 MB |
| IPv4 | 128 |
| MAC | 128 |
Layer 3 Features
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
Layer 2 Features
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
Hardware
| Max. Power Consumption | 60W |
| Power Method | (1) Universal input, 100–240V AC, 50/60 Hz (1) USP RPS DC input |
| Power Input Method | AC input |
| Power Supply | AC/DC, internal, 60W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet AR |
| Heat Dissipation | 102 BTU/hr |
| Weight | Without mounting brackets: 4.2 kg (9.2 lb) With mounting brackets: 4.3 kg (9.4 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | Yes |
| SFP+ | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 03853-25-08356 |
Software
| UniFi Network | Version 9.0.114 and later |
