Ubiquiti
Switch Pro Max 16
SKU: USW-Pro-Max-16 · 網路交換機
A 16-port, Layer 3 Etherlighting™ switch 2.5 GbE and versatile mounting options.
HK$2,755 ● ERPNext 即時價
登入睇商戶／批發價 → ● 供應中（落單後確認交期）
- 7 日退貨保證（全新未拆）
- 1–2 個工作天發貨
- 滿 HK$2,000 免費送貨
- 安全結帳
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

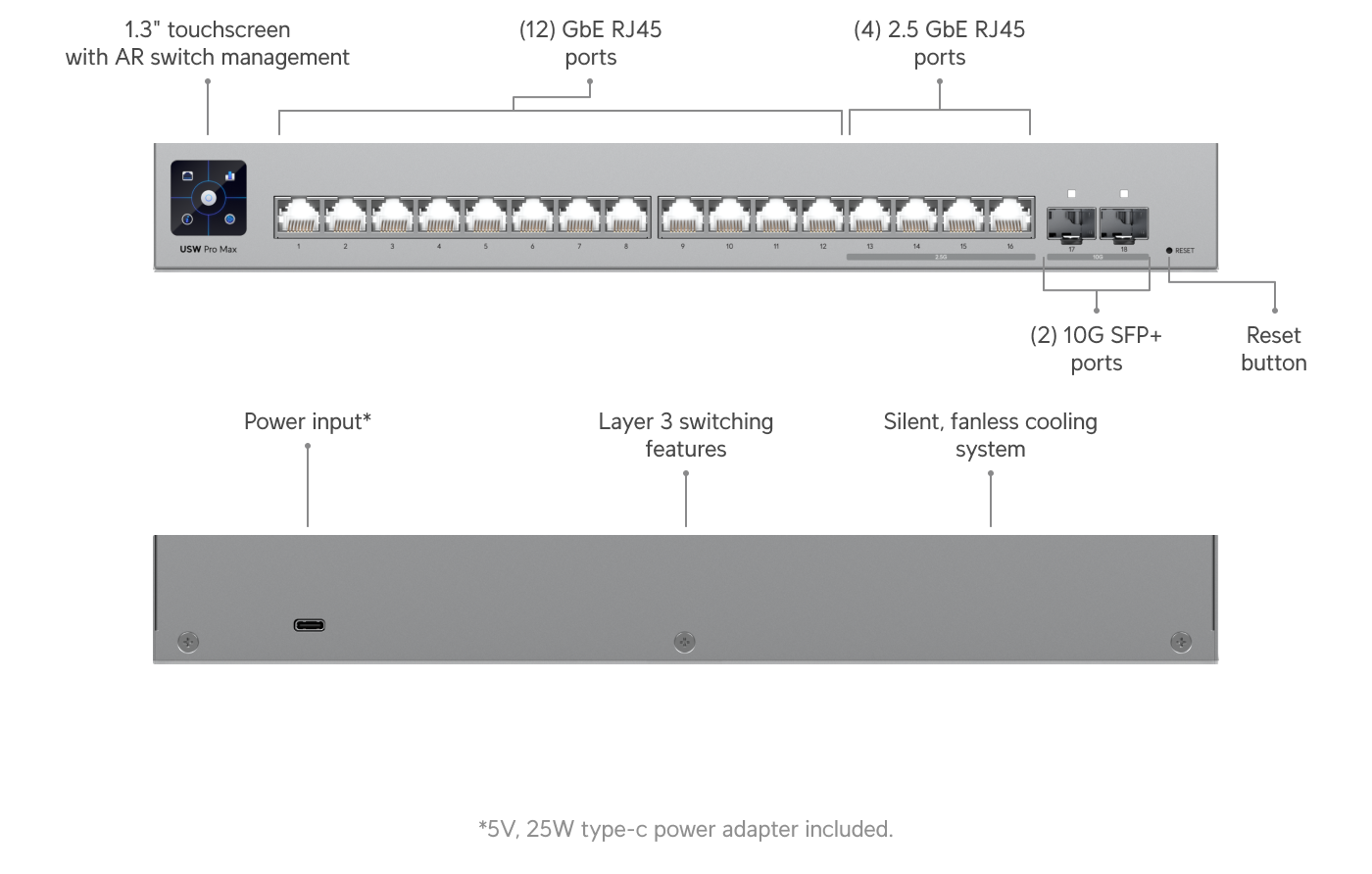

Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network* (4) 2.5 GbE RJ45 ports (12) GbE RJ45 ports (2) 10G SFP+ ports Versatile desktop, wall, and rack** mounting Silent, fanless cooling system *Pair with UniFi Etherlighting Patch Cables for optimal brightness. **Requires add-on Rack Mount accessory.
規格
Overview
| Dimensions | 325.1 x 160 x 43.7 mm (12.8 x 6.3 x 1.7") |
| 1 GbE RJ45 | 12 (1G/100M/10M) |
| 2.5 GbE RJ45 | 4 (2.5G/1G/100M/10M) |
| 10G SFP+ | 2 (10G/1G) |
| Layer 3 | Yes |
| Form Factor | Rack mount (1U), desktop, wall |
| Etherlighting™ | Yes |
Performance
| Switching Capacity | 84 Gbps |
| Total Non-Blocking Throughput | 42 Gbps |
| Forwarding Rate | 62 Mpps |
| Supported VLANs | 1,000 |
| MAC Address Table Size | 16,000 |
| ARP Entries | 6,000 |
| IPv4 Routes | 512 |
| IPv4 Static Routes | 256 |
| Packet Buffer Size | 1.5 MB |
| IPv4 | 128 |
| MAC | 128 |
Layer 3 Features
| DHCP Server (Local Networks) | Yes |
| DHCP Relay | Yes |
| Inter-VLAN Routing (Local Networks) | Yes |
| Static Routing (Local Networks) | Yes |
Layer 2 Features
| LACP Port Aggregation | Yes |
| STP & RSTP | Yes |
| QoS (DSCP) | Yes |
| Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron) | Yes |
| Advanced IGMP Configuration (Querier, Fast Leave, Router Port) | Yes |
| IGMP Snooping | Yes |
| 802.1X Control | Yes |
| MAC-Based ACLs & Device Isolation | Yes |
| DHCP Snooping & Guarding | Yes |
| Egress Rate Limit | Yes |
| Flow Control | Yes |
| Storm Control | Yes |
| Multicast & Broadcast Rate Limiting | Yes |
| MAC Address Blocking | Yes |
| IP-Based ACLs & Network Isolation | Yes |
| MAC-Based Port Restriction | Yes |
| Port Isolation | Yes |
| Port Mirroring | Yes |
| Jumbo Frames | Yes |
| LLDP-MED | Yes |
| Voice VLAN | Yes |
| Loop Protection | Yes |
| Virtual Network Override | Yes |
Hardware
| Max. Power Consumption | 25W |
| Power Method | AC/DC Adapter (included) |
| Power Input Method | USB Type-C, 5V DC, 5A |
| Power Supply | AC/DC, external, 25W |
| Supported Voltage Range | 4.8—5.2V DC/USB |
| Management | Ethernet AR |
| Heat Dissipation | 85.3 BTU/hr |
| Weight | 1.95 kg (4.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| Supported Rack Depth | 400~1200 mm (15.7-47.2") |
| LCM Display | 1.3" touchscreen |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | Yes |
| SFP+ | Yes |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC, Anatel: 08953-24-08356 |
Software
| UniFi Network | Version 8.1.127 and later |
