Ubiquiti
UniFi WAN Switch RJ45
SKU: USW-WAN-RJ45 · 網路交換機
10 GbE WAN Switch linking two Shadow Mode High Availability UniFi Gateways to a single ISP.
HK$3,500 ● ERPNext 即時價
登入睇商戶／批發價 → ● 供應中（落單後確認交期）
- 7 日退貨保證（全新未拆）
- 1–2 個工作天發貨
- 滿 HK$2,000 免費送貨
- 安全結帳
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

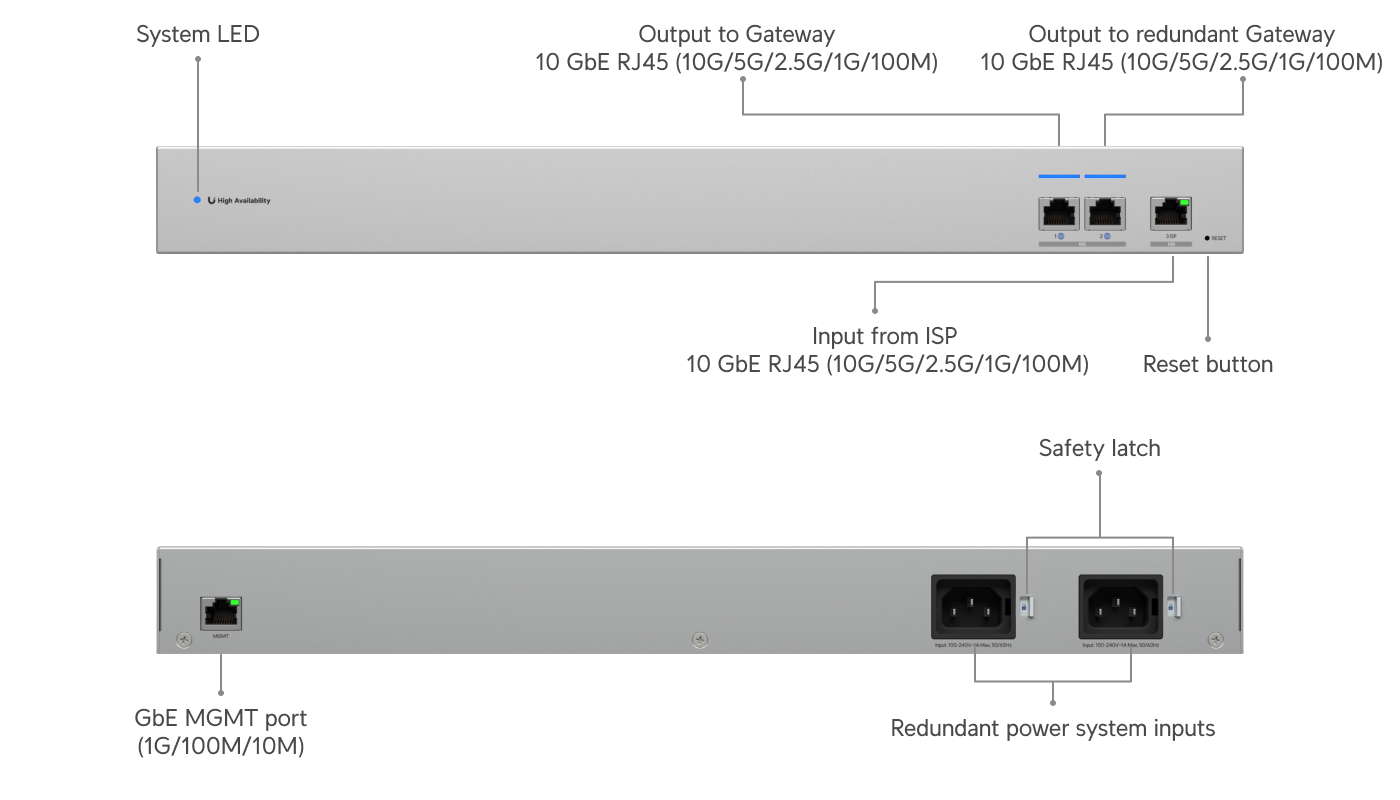

Combine with Shadow Mode High Availability to ensure uninterrupted connectivity (1) 10 GbE ISP uplink and (2) 10 GbE downlink ports (2) AC inputs for power redundancy (1) GbE port for management with UniFi Network *Use an additional USW-WAN-RJ45 switch for ISP failover deployments.
規格
Overview
| Dimensions | 442.4 x 120 x 43.7 mm (17.4 x 4.72 x 1.7") |
| 1 GbE RJ45 | 1 (1G/100M/10M) |
| 10 GbE RJ45 | 3 (10G/5G/2.5G/1G/100M) |
| Redundancy | (2) AC inputs |
| Form Factor | Rack mount (1U) |
Performance
| Switching Capacity | 20 Gbps |
| Total Non-Blocking Throughput | 10 Gbps |
| Forwarding Rate | 15 Mpps |
Hardware
| Max. Power Consumption | 18W |
| Power Method | (2) Universal input, 100–240V AC, 50/60 Hz |
| Power Input Method | AC input |
| Power Supply | (2) AC/DC, internal, 36W |
| Supported Voltage Range | 100–240V AC |
| Management | Ethernet |
| Weight | Without mounting brackets: 2.3 kg (5.1 lb) With mounting brackets: 2.4 kg (5.3 lb) |
| Enclosure Material | SGCC steel |
| Mount Material | SGCC steel |
| ESD Protection | Air: ± 16kV, contact: ± 10kV |
| Ambient Operating Temperature | -5 to 40° C (23 to 104° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| Ethernet | Yes |
| System | Yes |
| Certifications | CE, FCC, IC, Anatel: 04273-25-08356 |
| NDAA Compliant | Yes |
Software
| UniFi Network | Version 9.1.120 and later |
