Ubiquiti
Camera AI LPR
SKU: UVC-AI-LPR · CCTV 攝像機
查詢報價
Specialized 4K camera with 3x optical zoom and long-range IR night vision optimized for recognizing license plates on vehicles moving up to 90 km/h.
※ 價／分類來自 ERPNext，內容／配件來自 master Mongo。
概覽

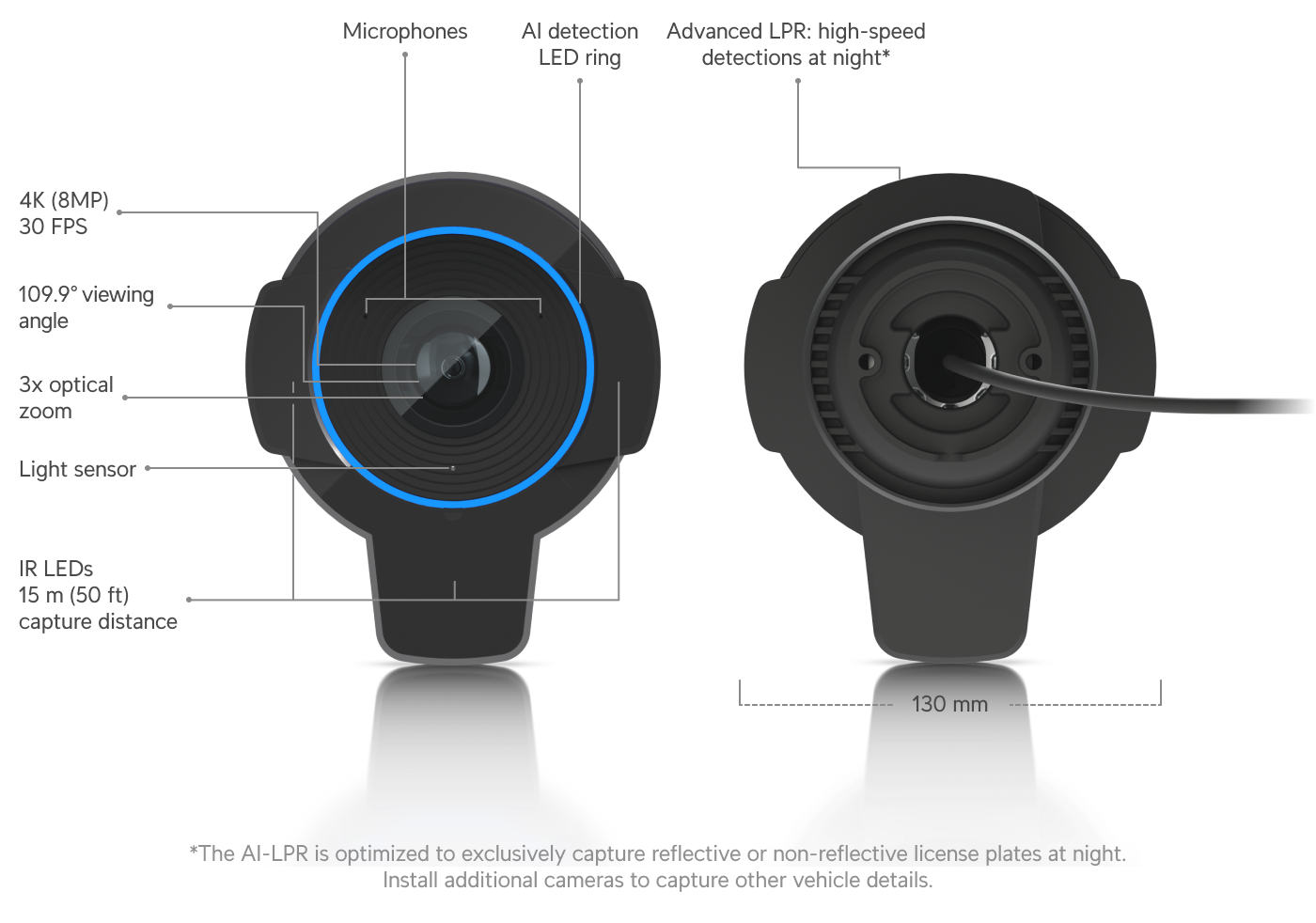

4K (8MP) video resolution 3x optical zoom 15 m (50 ft) IR capture distance Advanced LPR: high-speed detections at night* Cover up to two lanes of traffic Record audio with integrated microphones Weatherproof (outdoor exposed) LPR Setup Guide *The AI-LPR is optimized to exclusively capture reflective or non-reflective license plates at night. Install additional cameras to capture other vehicle details in dark conditions
規格
Grid overview
| AI | AI Detections |
| IR | 15 m (50 ft) |
| Lens | 4K |
| Resistance | IK04 |
| View Angle | H: 109.9° to 35° |
| Weatherproof | IP66 |
| Zoom | 3x Optical Zoom |
Overview
| Dimensions | 130 x 151.4 x 302.9 mm (5.1 x 6 x 11.9") |
| IR Night Vision | 15 m (50 ft) |
| Zoom Mode | 3x Optical |
| License Plate Recognition | Yes |
| Smart Detections (People, Vehicles, Animals) | Yes |
| Resolution | 4K |
| Field of View | Wide: H 109.9°, V 60°, D 127.7° Tele: H 35°, V 19.8°, D 40° |
| Audio | Microphone |
| Weatherproofing | IP66 |
| Tamper Resistance | IK04 |
| Mounting | Wall, ceiling, pole mount (Included) Junction box, angled base (Optional) |
Performance
| Networking Interface | GbE RJ45 port |
| Image Settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| Max. Frame Rate | 30 FPS |
| Resolution | 8MP 3840 x 2160 (16:9) |
| Sensor | 1/1.8" 8MP |
| Lens | F 4.1–12.3 mm, ƒ/1.53–ƒ/3.3 |
| IR Capture Distance | 15 m (50 ft) |
| LPR Night Mode | LPR optimization filter |
Hardware
| Max. Power Consumption | 25.5W |
| Supported Voltage Range | 42.5–57V DC |
| Power Method | PoE+ |
| Processor | Quad-core Arm® Cortex®-A53 based chip |
| Pole Mount Diameter | 1.5–2" (38–50 mm) |
| Weight | 1.5 kg (3.3 lb) |
| Enclosure Material | Aluminum alloy, polycarbonate |
| Mount Material | Aluminum Alloy |
| Expansion Slot | Micro SD memory card |
| Button | (1) Factory reset |
| Cable Connector Type | RJ45 |
| Cable Diameter | 4.5 mm (0.2") |
| Cable Length | 30 cm (1 ft) |
| Jacket Material | Thermoplastic elastomer |
| Jacket Enclosure Dimensions | ⌀20 x 70.6 mm (0.8 x 2.8") |
| Jacket Enclosure Material | Thermoplastic elastomer, polycarbonate, silicone rubber |
| Ambient Operating Temperature | -20 to 50° C (-4 to 122° F) |
| Ambient Operating Humidity | 10 to 90% noncondensing |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
